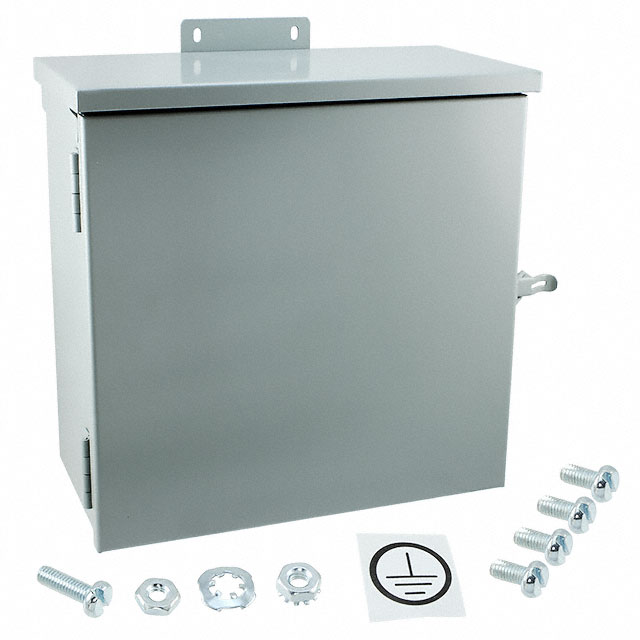

A12R126HCR

Active

Hoffman Enclosures, Inc.

BOX STEEL GRAY 12.01"L X 12.01"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX STEEL GRAY 12.01"L X 12.01"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A12R126HCR	A12R126 Series

Color	Gray	Gray
Container Type	Box	Box
Design	Hinged Door, Lid	Cover Included, Hinged Door, Lid
Features	Wall Mount, Mounting Flange	Wall Mount, Mounting Flange
Height [z]	5.984 in	5.984 in
Height [z]	152 mm	152 mm
Material	Metal, Steel	Metal, Steel
Ratings	NEMA 3R, 50E, IP32, UL-50	NEMA 3R, 50E, IP32, UL-50
Size / Dimension [x]	305 mm	305 mm
Size / Dimension [x]	12.008 in	12.008 in
Size / Dimension [y]	305 mm	305 mm
Size / Dimension [y]	12.008 in	12.008 in
Thickness	16 Gauge	16 Gauge
Weight	13 lbs	13 - 25 lbs
Weight	5.9 kg	5.9 - 11.3 kg

BOX STEEL GRAY 12.01"L X 12.01"W

Part	Container Type	Height [z]	Height [z]	Ratings	Weight	Weight	Design	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material	Color	Features	Thickness
Hoffman Enclosures, Inc. A12R126NK	Box	5.984 in	152 mm	50E, IP32, NEMA 3R, UL-50	11.3 kg	25 lbs	Cover Included	305 mm	12.008 in	305 mm	12.008 in	Metal, Steel	Gray
Hoffman Enclosures, Inc. A12R126HCR	Box	5.984 in	152 mm	50E, IP32, NEMA 3R, UL-50	5.9 kg	13 lbs	Hinged Door, Lid	305 mm	12.008 in	305 mm	12.008 in	Metal, Steel	Gray	Mounting Flange, Wall Mount	16 Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 164.50

General part information

Box Metal, Steel Gray Hinged Door, Lid 12.008" L x 12.008" W (305.00mm x 305.00mm) X 5.984" (152.00mm)
