1422-P24-07-0.50

Active

CABLE SFP28 M-M 500MM

Search across all available documentation for this part.

Active

CABLE SFP28 M-M 500MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

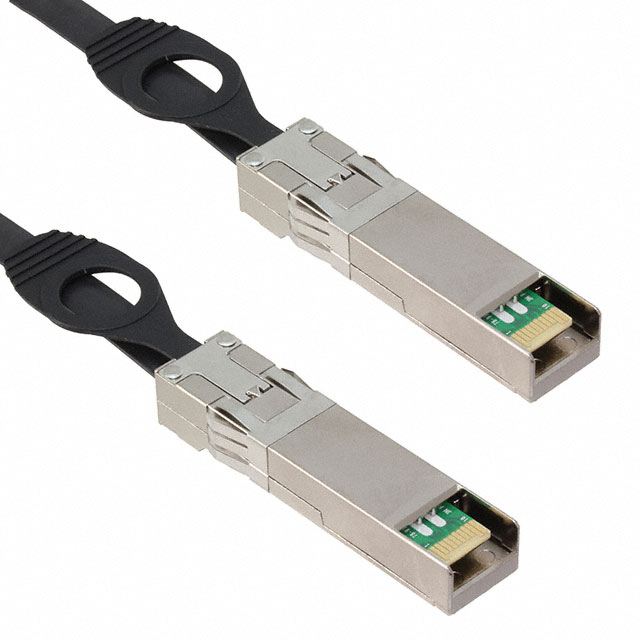

20 Position SFP28 Plug to Plug 1.64' (500.00mm) Black Shielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1422-P24-07-0.50	1422 Series

Accessory Type	-	Ball Locator Marker
Cable Connectors	SFP28	SFP28
Cable Type	Twin Axial, Flat	Twin Axial, Flat
Color	Black	Black
Connector Type	Plug to Plug	Plug to Plug
Fastening Type	Push-Pull, Latch Lock	Push-Pull, Latch Lock
Features	Pull Tab	Pull Tab
For Use With/Related Products	-	Pipes, Utilities Locators, Cables
Frequency - Max [Max]	25 Gbps	25 Gbps
Gender	Male to Male	Male to Male
Length [x]	1.64 ft	1.64 - 13.12 ft
Length [x]	500 mm	1 - 500 m
Number of Positions	20	20
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Shielding	Shielded	Shielded
Specifications	-	Red
Specifications	-	4 in
Type	-	Utilities Locator
Usage	External	External
Wire Gauge	30 AWG	26 - 30 AWG

CABLE SFP28 M-M 2M

Part	Fastening Type	Wire Gauge	Features	Frequency - Max [Max]	Connector Type	Cable Connectors	Color	Number of Positions	Shielding	Length [x]	Length [x]	Cable Type	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Usage	Accessory Type	Specifications	Specifications [diameter]	For Use With/Related Products	Type
3M 1422-P24-07-2.00	Latch Lock, Push-Pull	30 AWG	Pull Tab	25 Gbps	Plug to Plug	SFP28	Black	20	Shielded	2 m	6.56 ft	Flat, Twin Axial	Male to Male	70 °C	0 °C	External
3M 1422-P40-07-3.00	Latch Lock, Push-Pull		Pull Tab		Plug to Plug	SFP28		20		3 m	9.84 ft		Male to Male	70 °C	0 °C	External
3M 1422-P34-07-4.00	Latch Lock, Push-Pull	26 AWG	Pull Tab	25 Gbps	Plug to Plug	SFP28	Black	20	Shielded	4 m	13.12 ft	Flat, Twin Axial	Male to Male	70 °C	0 °C	External
3M 1422CE-XR/ID																	Ball Locator Marker	Red	4 in	Cables, Pipes, Utilities Locators	Utilities Locator
3M 1422-XR/ID																	Ball Locator Marker	Red	4 in	Cables, Pipes, Utilities Locators	Utilities Locator
3M 1422-P35-07-1.00	Latch Lock, Push-Pull		Pull Tab		Plug to Plug	SFP28		20		1 m	3.28 ft		Male to Male	70 °C	0 °C	External
3M 1422-P24-07-0.50	Latch Lock, Push-Pull	30 AWG	Pull Tab	25 Gbps	Plug to Plug	SFP28	Black	20	Shielded	500 mm	1.64 ft	Flat, Twin Axial	Male to Male	70 °C	0 °C	External
