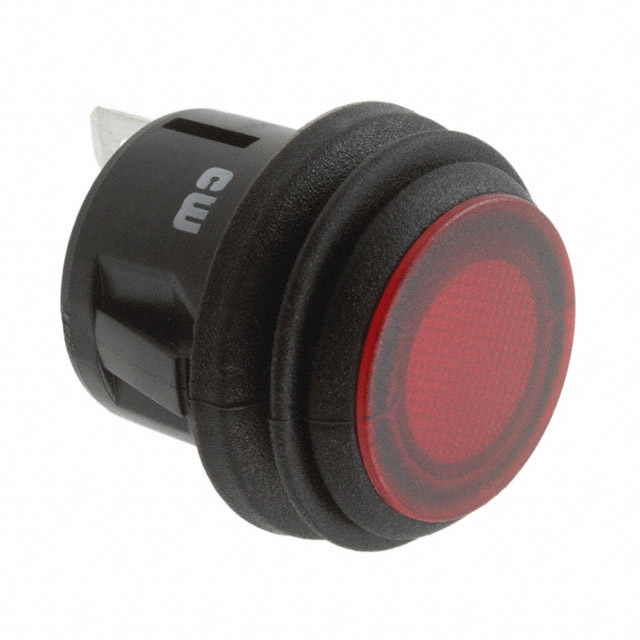

GPB527C202BR

Active

CW Industries

SWITCH PUSH SPST-NO 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GPB527C202BR

Active

CW Industries

SWITCH PUSH SPST-NO 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GPB527C202BR

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A, 20 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

GPB527C Series

Part	Type	Termination Style	Actuator Marking	Actuator Type	Color - Actuator/Cap	Mounting Type	Switch Function	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Ingress Protection	Current Rating (Amps)	Illumination Voltage (Nominal)	Illumination Type, Color
CW Industries GPB527C202BG	Standard	Quick Connect - 0.187" (4.7mm)	No Marking	Button Round	Green	Panel Mount Snap-In	Off-Mom	SPST-NO	20.2 mm	28 V	-25 °C	85 °C	125 V	IP65 - Dust Tight Water Resistant	10 A
CW Industries GPB527C202BR	Standard	Quick Connect - 0.187" (4.7mm)	No Marking	Button Round	Red	Panel Mount Snap-In	Off-Mom	SPST-NO	20.2 mm	14 V	-25 °C	85 °C	125 V	IP65 - Dust Tight Water Resistant	10 A 20 A
CW Industries GPB527C2B02BG1	Illuminated Standard	Quick Connect - 0.187" (4.7mm)	No Marking	Button Round	Green	Panel Mount Snap-In	Off-Mom	SPST-NO	20.2 mm	28 V	-25 °C	85 °C	125 V	IP65 - Dust Tight Water Resistant	10 A	12 VDC	Green LED
CW Industries GPB527C2L02BR1	Illuminated Standard	Quick Connect - 0.187" (4.7mm)	No Marking	Button Round	Red	Panel Mount Snap-In	Off-Mom	SPST-NO	20.2 mm	28 V	-25 °C	85 °C	125 V	IP65 - Dust Tight Water Resistant	10 A	12 VDC	LED Red
CW Industries GPB527C202BU	Standard	Quick Connect - 0.187" (4.7mm)	No Marking	Button Round	Blue	Panel Mount Snap-In	Off-Mom	SPST-NO	20.2 mm	28 V	-25 °C	85 °C	125 V	IP65 - Dust Tight Water Resistant	10 A
CW Industries GPB527C2L02BA1	Illuminated Standard	Quick Connect - 0.187" (4.7mm)	No Marking	Button Round	Amber	Panel Mount Snap-In	Off-Mom	SPST-NO	20.2 mm	28 V	-25 °C	85 °C	125 V	IP65 - Dust Tight Water Resistant	10 A	12 VDC	Amber LED
CW Industries GPB527C2L02BG1	Illuminated Standard	Quick Connect - 0.187" (4.7mm)	No Marking	Button Round	Green	Panel Mount Snap-In	Off-Mom	SPST-NO	20.2 mm	28 V	-25 °C	85 °C	125 V	IP65 - Dust Tight Water Resistant	10 A	12 VDC	Green LED
CW Industries GPB527C202BA	Standard	Quick Connect - 0.187" (4.7mm)	No Marking	Button Round	Amber	Panel Mount Snap-In	Off-Mom	SPST-NO	20.2 mm	28 V	-25 °C	85 °C	125 V	IP65 - Dust Tight Water Resistant	10 A
CW Industries GPB527C202BW	Standard	Quick Connect - 0.187" (4.7mm)	No Marking	Button Round	White	Panel Mount Snap-In	Off-Mom	SPST-NO	20.2 mm	28 V	-25 °C	85 °C	125 V	IP65 - Dust Tight Water Resistant	10 A
CW Industries GPB527C202BB	Standard	Quick Connect - 0.187" (4.7mm)	No Marking	Button Round	Black	Panel Mount Snap-In	Off-Mom	SPST-NO	20.2 mm	28 V	-25 °C	85 °C	125 V	IP65 - Dust Tight Water Resistant	10 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.56
		10	$ 5.01
		25	$ 4.76
		50	$ 4.56
		100	$ 4.41
		250	$ 4.18
		500	$ 3.86
		1000	$ 3.68

Description

General part information

GPB527C Series

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
