0801450

Active

Phoenix Contact

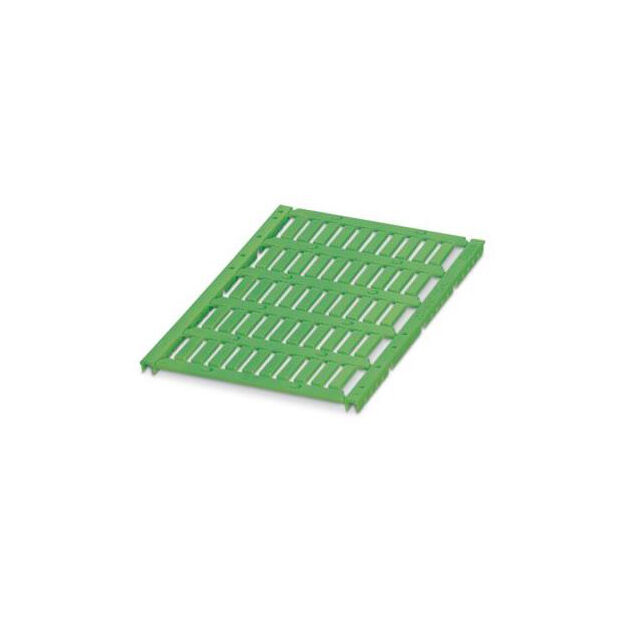

WIRE MARKER CLIP-ON 15MM X 4MM

Deep-Dive with AI

Search across all available documentation for this part.

0801450

Active

Phoenix Contact

WIRE MARKER CLIP-ON 15MM X 4MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0801450	UCT-WMT Series

Cable Diameter	-	0.394 - 1.378 in
Cable Diameter	-	10 - 35 mm
Cable Diameter	-	0.024 - 0.059 in
Cable Diameter	-	0.6 - 1.5 mm
Cable Diameter	-	14 - 22 mm
Cable Diameter	-	7 mm
Cable Diameter [diameter]	1.969 in, 0.024 in	0.024 - 1.969 in
Cable Diameter [diameter]	50 mm, 0.6 mm	0.6 - 50 mm
Color	Green	Green, Yellow, Blue, Red, White
Legend	Blank	Blank
Material	Polycarbonate (PC)	Polycarbonate (PC), Polycarbonate
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size [x]	4 mm	4 - 23 mm
Size [x]	0.16 "	0.16 - 0.91 "
Size [y]	15 mm	4 - 30 mm
Size [y]	0.59 in	0.16 - 1.18 in
Type	Wire Marker, Clip-On	Wire Marker, Clip-On, Wire Marker, Cards

UCT-WMT Series

WIRE MARKER CLIP-ON 15MM X 4MM

Part	Size [x]	Size [y]	Size [y]	Size [x]	Type	Material	Legend	Cable Diameter [diameter]	Cable Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Cable Diameter [Max] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]
Phoenix Contact 0801450	4 mm	15 mm	0.59 in	0.16 "	Wire Marker, Clip-On	Polycarbonate (PC)	Blank	0.024 in, 1.969 in	0.6 mm, 50 mm	-40 °C	120 °C	Green
Phoenix Contact 0801442	4 mm	12 mm	0.47 "	0.16 "	Wire Marker, Clip-On	Polycarbonate (PC)	Blank			-40 °C	120 °C	Green	0.394 in	10 mm	0.024 in	0.6 mm
Phoenix Contact 0801423	4 mm	30 mm	1.18 in	0.16 "	Wire Marker, Clip-On	Polycarbonate (PC)	Blank			-40 °C	120 °C	Yellow	0.551 in		0.059 in	1.5 mm	14 mm
Phoenix Contact 0801444	4 mm	12 mm	0.47 "	0.16 "	Wire Marker, Clip-On	Polycarbonate (PC)	Blank			-40 °C	120 °C	Blue	0.394 in	10 mm	0.024 in	0.6 mm
Phoenix Contact 0801449	4 mm	15 mm	0.59 in	0.16 "	Wire Marker, Clip-On	Polycarbonate (PC)	Blank	0.024 in, 1.969 in	0.6 mm, 50 mm	-40 °C	120 °C
Phoenix Contact 0801448	4 mm	15 mm	0.59 in	0.16 "	Wire Marker, Clip-On	Polycarbonate (PC)	Blank	0.024 in, 1.969 in	0.6 mm, 50 mm	-40 °C	120 °C	Red
Phoenix Contact 0801455	23 mm	4 mm	0.16 in	0.91 in	Wire Marker, Clip-On	Polycarbonate (PC)	Blank			-40 °C	120 °C	Red	1.378 in	35 mm	0.059 in	1.5 mm
Phoenix Contact 0801468	18 mm	4 mm	0.16 in	0.71 in	Wire Marker, Clip-On	Polycarbonate (PC)	Blank			-40 °C	120 °C	Blue	0.866 in		0.024 in	0.6 mm	22 mm
Phoenix Contact 0801465	18 mm	4 mm	0.16 in	0.71 in	Wire Marker, Clip-On	Polycarbonate (PC)	Blank			-40 °C	120 °C		0.866 in		0.024 in	0.6 mm	22 mm
Phoenix Contact 0801447	4 mm	15 mm	0.59 in	0.16 "	Wire Marker, Clip-On	Polycarbonate (PC)	Blank	0.024 in, 1.969 in	0.6 mm, 50 mm	-40 °C	120 °C	Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 9.21

Description

General part information

UCT-WMT Series

Wire Marker, Clip-On 0.59" W x 0.16" L (15.0mm x 4.0mm) Green Polycarbonate (PC)

Documents

Technical documentation and resources

No documents available
