Q-2C03W0003001M

Active

Amphenol Custom Cable

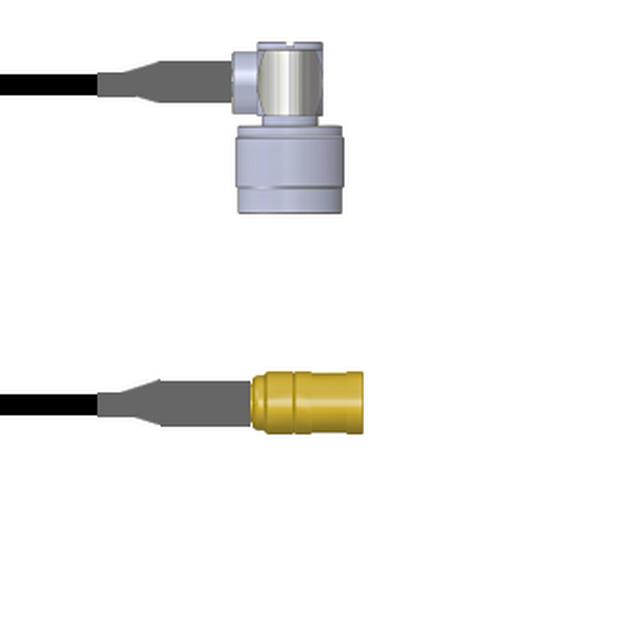

CBL ASSY SMB-NTYPE PLUG-PLG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C03W0003001M

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-PLG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C03W0003001M

1st Connector	SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2C03W0 Series

Part	2nd Connector	Color	Overall Impedance	1st Contact Gender	1st Connector	1st Connector Mounting Type	Features	Cable Type	2nd Connector Mounting Type	Length	Length	Length	2nd Contact Gender	Frequency - Max [Max]	Style
Amphenol Custom Cable Q-2C03W0003072i	N-Type Plug Right Angle	Black	50 Ohms	Female	SMB Plug	Free Hanging (In-Line)	Shielded	RG-174	Free Hanging (In-Line)	6 ft	72 in	1.8 m	Male	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-2C03W0005060i	N-Type Plug Right Angle	Copper	50 Ohms	Female	SMB Plug	Free Hanging (In-Line)	Shielded	RG-316	Free Hanging (In-Line)	5 ft	5 '	1.5 m	Male	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-2C03W00031.5M	N-Type Plug Right Angle	Black	50 Ohms	Female	SMB Plug	Free Hanging (In-Line)	Shielded	RG-174	Free Hanging (In-Line)	4.9 ft	59.1 in	1.5 m	Male	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-2C03W0005048i	N-Type Plug Right Angle	Copper	50 Ohms	Female	SMB Plug	Free Hanging (In-Line)	Shielded	RG-316	Free Hanging (In-Line)	4 ft	48 in	1200 mm	Male	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-2C03W0005003M	N-Type Plug Right Angle	Copper	50 Ohms	Female	SMB Plug	Free Hanging (In-Line)	Shielded	RG-316	Free Hanging (In-Line)	9.8 '	118.1 in	3 m	Male	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-2C03W0005009i	N-Type Plug Right Angle	Copper	50 Ohms	Female	SMB Plug	Free Hanging (In-Line)	Shielded	RG-316	Free Hanging (In-Line)		9 "	228.6 mm	Male	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-2C03W00032.5M	N-Type Plug Right Angle	Black	50 Ohms	Female	SMB Plug	Free Hanging (In-Line)	Shielded	RG-174	Free Hanging (In-Line)	8.2 '	98.4 in	2.5 m	Male	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-2C03W0003001M	N-Type Plug Right Angle	Black	50 Ohms	Female	SMB Plug	Free Hanging (In-Line)	Shielded	RG-174	Free Hanging (In-Line)	3.3 ft	39.4 in	1 m	Male	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-2C03W0003003M	N-Type Plug Right Angle	Black	50 Ohms	Female	SMB Plug	Free Hanging (In-Line)	Shielded	RG-174	Free Hanging (In-Line)	9.8 '	118.1 in	3 m	Male	4 GHz	SMB to N-Type
Amphenol Custom Cable Q-2C03W0003002M	N-Type Plug Right Angle	Black	50 Ohms	Female	SMB Plug	Free Hanging (In-Line)	Shielded	RG-174	Free Hanging (In-Line)	6.6 ft	78.7 in	2 m	Male	4 GHz	SMB to N-Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 77.50
		25	$ 76.00
		50	$ 74.50
		100	$ 73.00
		250	$ 71.50

Description

General part information

Q-2C03W0 Series

Cable Assembly Coaxial SMB to N-Type RG-174 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
