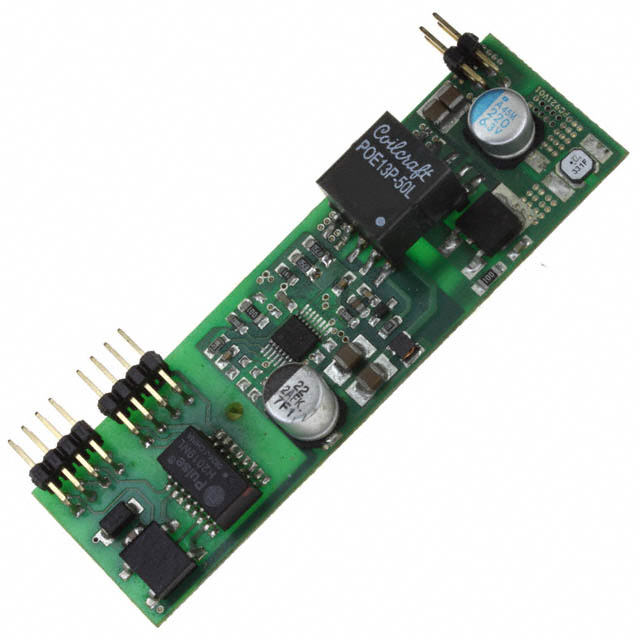

SPDCPOE05

Obsolete

STMicroelectronics

DC DC CONVERTER 5V 10W

Search across all available documentation for this part.

Obsolete

STMicroelectronics

DC DC CONVERTER 5V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Features	Number of Outputs	Mounting Type	Current - Output (Max) [Max]	Applications	Package / Case	Type
STMicroelectronics SPDCPOE05	24.13 mm	86 mm	17 mm	3.39 in	0.67 in	24.2 mm	38.5 V	10 W	60 V	5 V	1.5 kV	-40 °C	70 °C	80 %	SCP UVLO	1	Through Hole	2 A	ITE (Commercial)	Module	Isolated PoE Module
STMicroelectronics SPDC400FC12M0.35	0.94 in	45 mm	17.1 mm	1.77 in	0.67 in	24 mm	100 VDC		370 V	-12 V		-10 °C	85 °C	80 %		1	Surface Mount	350 mA	ITE (Commercial)	Module	Non-Isolated PoL Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated PoE Module DC DC Converter 1 Output 5V 2A 38.5V - 60V Input
