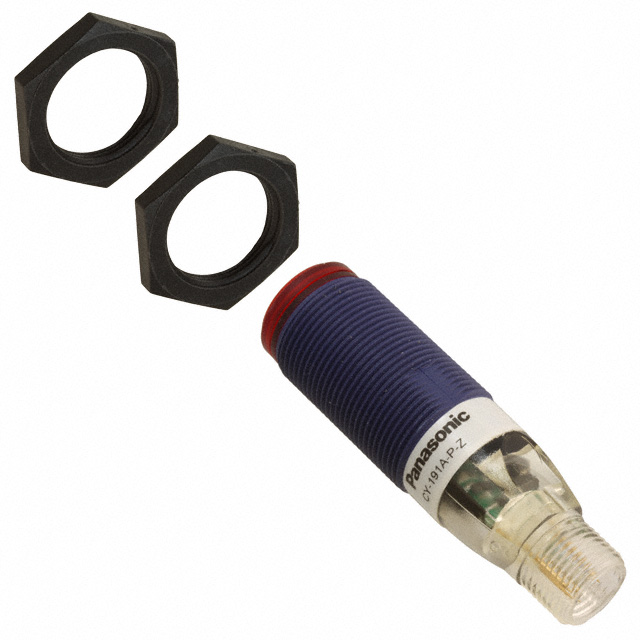

CY-191A-P-Z-Y

Obsolete

Panasonic Industrial Automation Sales

SENSOR RETROREFLECTIVE 2M PNP

Deep-Dive with AI

Search across all available documentation for this part.

CY-191A-P-Z-Y

Obsolete

Panasonic Industrial Automation Sales

SENSOR RETROREFLECTIVE 2M PNP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY-191A-P-Z-Y

Connection Method	Connector, 4POS, M12
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Configuration	PNP - Open Collector
Response Time	1 ms
Sensing Distance	78.7 "
Sensing Distance	2 m
Sensing Distance	6.6 '
Sensing Method	Retroreflective
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

CY-191 Series

Part	Connection Method	Light Source	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Method	Ingress Protection	Output Configuration	Sensing Distance	Sensing Distance	Sensing Distance	Cable Length	Cable Length	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Time
Panasonic Industrial Automation Sales CY-191B-Y	Cable	Red LED	55 °C	-25 °C	Retroreflective	IP67	NPN - Open Collector	78.7 "	2 m	6.6 '	78.74 in	2 m	12 V	24 V	1 ms
Panasonic Industrial Automation Sales CY-191VB-P-Z-Y	4POS Connector M12	Red LED	55 °C	-25 °C	Retroreflective	IP67	PNP - Open Collector	78.7 "	2 m	6.6 '			12 V	24 V	1 ms
Panasonic Industrial Automation Sales CY-191A-P-Y	Cable	Red LED	55 °C	-25 °C	Retroreflective	IP67	PNP - Open Collector	78.7 "	2 m	6.6 '	78.74 in	2 m	12 V	24 V	1 ms
Panasonic Industrial Automation Sales CY-191A-P-Z-Y	4POS Connector M12	Red LED	55 °C	-25 °C	Retroreflective	IP67	PNP - Open Collector	78.7 "	2 m	6.6 '			12 V	24 V	1 ms
Panasonic Industrial Automation Sales CY-191A-Z-Y	4POS Connector M12	Red LED	55 °C	-25 °C	Retroreflective	IP67	NPN - Open Collector	78.7 "	2 m	6.6 '			12 V	24 V	1 ms
Panasonic Industrial Automation Sales CY-191VB-P-Y	Cable	Red LED	55 °C	-25 °C	Retroreflective	IP67	PNP - Open Collector	78.7 "	2 m	6.6 '	78.74 in	2 m	12 V	24 V	1 ms
Panasonic Industrial Automation Sales CY-191B-Z-Y	4POS Connector M12	Red LED	55 °C	-25 °C	Retroreflective	IP67	NPN - Open Collector	78.7 "	2 m	6.6 '			12 V	24 V	1 ms
Panasonic Industrial Automation Sales CY-191VB-Z-Y	4POS Connector M12	Red LED	55 °C	-25 °C	Retroreflective	IP67	NPN - Open Collector	78.7 "	2 m	6.6 '			12 V	24 V	1 ms
Panasonic Industrial Automation Sales CY-191B-P-Z-Y	4POS Connector M12	Red LED	55 °C	-25 °C	Retroreflective	IP67	PNP - Open Collector	78.7 "	2 m	6.6 '			12 V	24 V	1 ms
Panasonic Industrial Automation Sales CY-191VB-Y	Cable	Red LED	55 °C	-25 °C	Retroreflective	IP67	NPN - Open Collector	78.7 "	2 m	6.6 '	78.74 in	2 m	12 V	24 V	1 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CY-191 Series

Retroreflective Optical Sensor 78.7" (2m) 6.6' PNP - Open Collector
