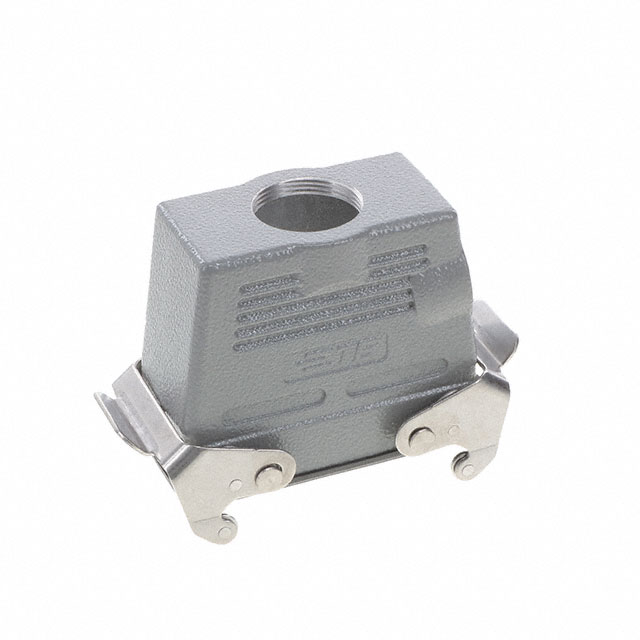

H16B-TBFHS-M32

Active

TE Connectivity AMP Connectors

T1750161132-000

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

T1750161132-000

Technical Specifications

Parameters and characteristics for this part

Specification	H16B-TBFHS-M32

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	H16B
Size / Dimension [x]	95.3 mm
Size / Dimension [x]	3.752 in
Size / Dimension [y]	44.8 mm
Size / Dimension [y]	1.764 "
Size / Dimension [z]	3.091 in
Size / Dimension [z]	78.5 mm
Style	Bottom Entry
Thread Size	M32

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	28	$ 18.98

T1750161132-000

Part	Style	Housing Finish	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Features	Housing Material	Size	Thread Size	Ingress Protection	Lock Location	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]
TE Connectivity AMP Connectors H16B-TBFHS-M32	Bottom Entry	Powder Coated	Gray	125 °C	-40 °C	Hood - Coupling	Cable to Cable	Aluminum Alloy, Die Cast	H16B	M32	IP65 - Dust Tight, Water Resistant	Locking Clip (2) on Hood Top	44.8 mm	1.764 "	95.3 mm	3.091 in	3.752 in	78.5 mm

General part information

Hood - Coupling Connector Bottom Entry M32 H16B IP65 - Dust Tight, Water Resistant
