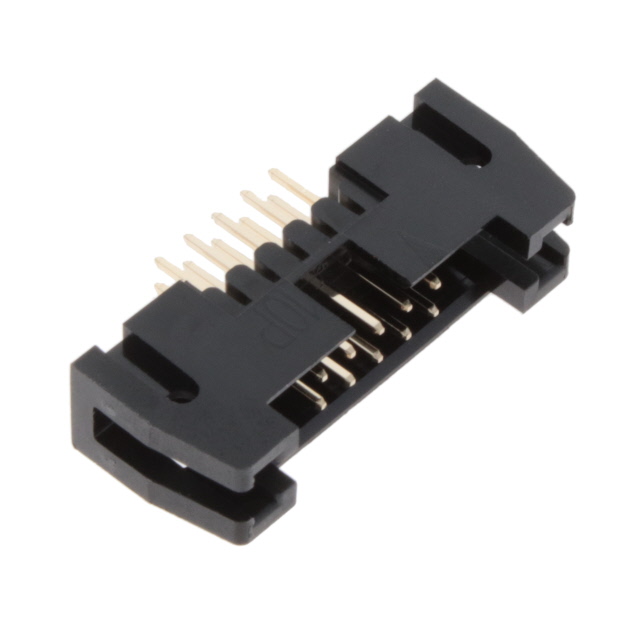

3110-10-001-11-00

Active

CnC Tech, LLC

CONN HEADER VERT 10POS 2MM

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN HEADER VERT 10POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	3110-10-001-11-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Number of Positions Loaded	Shrouding	Contact Length - Post	Contact Length - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Number of Rows	Fastening Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Style	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Termination	Contact Material	Mounting Type	Number of Positions
CnC Tech, LLC 3110-10-001-11-00	All	Shrouded - 4 Wall	0.122 "	3.1 mm	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Keying Slot	Header	2	Push-Pull	Square	Flash	Gold	0.079 in	2 mm	Board to Cable/Wire	Male Pin	0.079 in	2 mm	UL94 V-0	Solder	Brass	Through Hole	10
CnC Tech, LLC 3110-10-003-11-00-TR	All	Shrouded - 4 Wall			Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Keying Slot	Header	2	Push-Pull	Square	Flash	Gold	0.079 in	2 mm	Board to Cable/Wire	Male Pin	0.079 in	2 mm	UL94 V-0	Solder	Brass	Surface Mount	10
CnC Tech, LLC 3110-10-001-12-00	All	Shrouded - 4 Wall	0.122 "	3.1 mm	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Keying Slot	Header	2	Latch Lock/Eject Hooks Short	Square	Flash	Gold	0.079 in	2 mm	Board to Cable/Wire	Male Pin	0.079 in	2 mm	UL94 V-0	Solder	Brass	Through Hole	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 10 position 0.079" (2.00mm)
