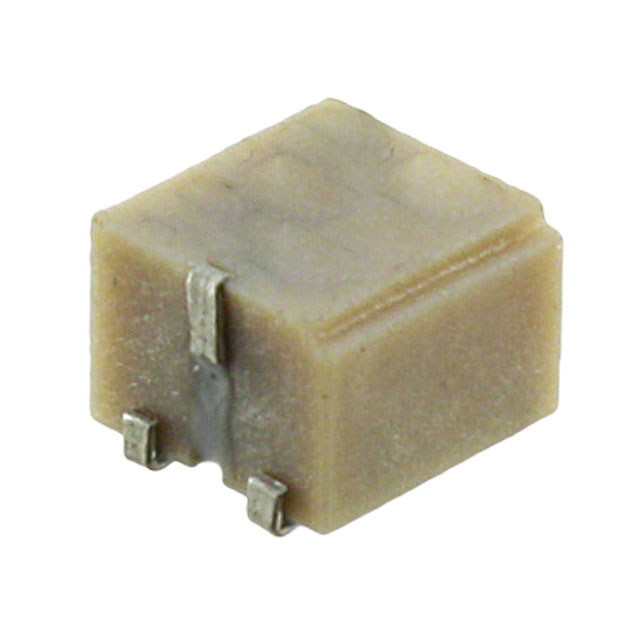

44WR500LFT7

Active

TT Electronics/BI

TRIMMER 500 OHM 0.25W J LEAD TOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

44WR500LFT7

Active

TT Electronics/BI

TRIMMER 500 OHM 0.25W J LEAD TOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	44WR500LFT7

Adjustment Type	Top Adjustment
Mounting Type	Surface Mount
Number of Turns	9
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	500 Ohms
Resistive Material	Cermet
Size / Dimension	Rectangular - Face
Size / Dimension [x]	4.83 mm
Size / Dimension [x]	0.19 "
Size / Dimension [y]	0.138 "
Size / Dimension [y]	3.51 mm
Temperature Coefficient	100 ppm/°C
Termination Style	J Lead
Tolerance	10 %

44WR Series

Part	Temperature Coefficient	Power (Watts)	Power (Watts)	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Resistive Material	Mounting Type	Number of Turns	Resistance	Tolerance	Adjustment Type	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]
TT Electronics/BI 44WR1MEGLFT13	100 ppm/°C	0.25 W	250 mW	J Lead	0.154 in	0.19 "	4.83 mm	3.91 mm	Cermet	Surface Mount	9	1 MOhms	10 %	Top Adjustment
TT Electronics/BI 44WR1KLFT7	100 ppm/°C	0.25 W	250 mW	J Lead			4.83 mm	3.51 mm	Cermet	Surface Mount	9	1000 Ohms	10 %	Top Adjustment	Rectangular - Face	0.138 "	0.19 "
TT Electronics/BI 44WR10KLFT13	100 ppm/°C	0.25 W	250 mW	J Lead	0.154 in	0.19 "	4.83 mm	3.91 mm	Cermet	Surface Mount	9	10000 Ohms	10 %	Top Adjustment
TT Electronics/BI 44WR100KLFT7	100 ppm/°C	0.25 W	250 mW	J Lead			4.83 mm	3.51 mm	Cermet	Surface Mount	9	100 kOhms	10 %	Top Adjustment	Rectangular - Face	0.138 "	0.19 "
TT Electronics/BI 44WR2MEGLFT7	100 ppm/°C	0.25 W	250 mW	J Lead	0.154 in	0.19 "	4.83 mm	3.91 mm	Cermet	Surface Mount	9	2 MOhms	10 %	Top Adjustment
TT Electronics/BI 44WR500LFT7	100 ppm/°C	0.25 W	250 mW	J Lead			4.83 mm	3.51 mm	Cermet	Surface Mount	9	500 Ohms	10 %	Top Adjustment	Rectangular - Face	0.138 "	0.19 "
TT Electronics/BI 44WR1KLFT13	100 ppm/°C	0.25 W	250 mW	J Lead	0.154 in	0.19 "	4.83 mm	3.91 mm	Cermet	Surface Mount	9	1000 Ohms	10 %	Top Adjustment
TT Electronics/BI 44WR50LFTB	250 ppm/°C	0.25 W	250 mW	J Lead	0.154 in	0.19 "	4.83 mm	3.91 mm	Cermet	Surface Mount	9	50 Ohms	20 %	Top Adjustment
TT Electronics/BI 44WR1KLFTB	100 ppm/°C	0.25 W	250 mW	J Lead			4.83 mm	3.51 mm	Cermet	Surface Mount	9	1000 Ohms	10 %	Top Adjustment	Rectangular - Face	0.138 "	0.19 "
TT Electronics/BI 44WR100LFT13	100 ppm/°C	0.25 W	250 mW	J Lead	0.154 in	0.19 "	4.83 mm	3.91 mm	Cermet	Surface Mount	9	100 Ohms	10 %	Top Adjustment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.61
		10	$ 5.14
		25	$ 4.58
		50	$ 4.30
		100	$ 3.92
	Digi-Reel®	1	$ 5.61
		10	$ 5.14
		25	$ 4.58
		50	$ 4.30
		100	$ 3.92
	Tape & Reel (TR)	250	$ 3.18
		500	$ 2.99
		750	$ 2.90
		1250	$ 2.80
		2500	$ 2.62

Description

General part information

44WR Series

500 Ohms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 9.0 Turn Top Adjustment
