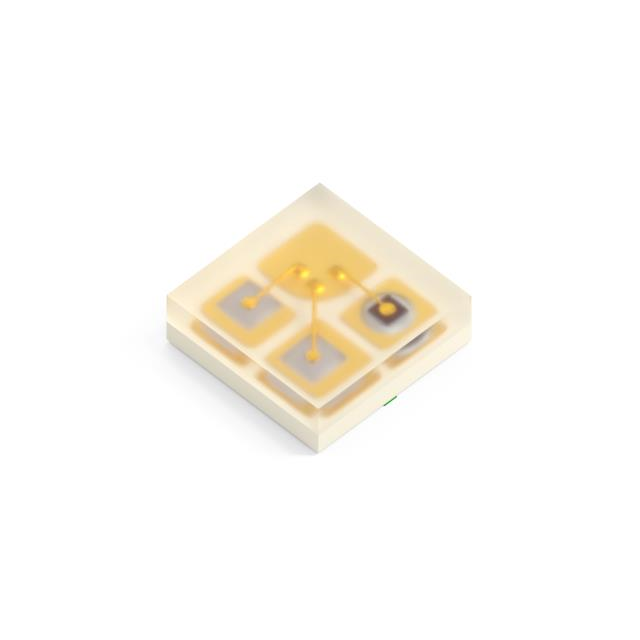

XZBGRBBRMER158W
ActiveSunLED
LED RGB CLEAR 4SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZBGRBBRMER158W
ActiveSunLED
LED RGB CLEAR 4SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZBGRBBRMER158W |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 5 mA |
| Current - Test [custom] | 5 mA |
| Current - Test [custom] | 5 mA |
| Height (Max) [Max] | 0.25 mm |
| Lens Color | Colorless |
| Lens Size | 0.65 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 19 mcd |
| Millicandela Rating [custom] | 89 mcd |
| Millicandela Rating [custom] | 29 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.65 mm |
| Size / Dimension [y] | 0.65 mm |
| Supplier Device Package | 4-SMD |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3 V |
| Voltage - Forward (Vf) (Typ) [custom] | 1.85 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.9 V |
| Wavelength - Dominant | 467 nm, 527 nm, 624 nm |
| Wavelength - Peak [custom] | 632 nm |
| Wavelength - Peak [custom] | 518 nm |
| Wavelength - Peak [custom] | 461 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.48 | |
| Digi-Reel® | 1 | $ 1.48 | ||
| Tape & Reel (TR) | 4000 | $ 0.50 | ||
| 8000 | $ 0.49 | |||
| 12000 | $ 0.47 | |||
Description
General part information
XZBGRBBRMER158 Series
Red, Green, Blue (RGB) 624nm Red, 527nm Green, 467nm Blue LED Indication - Discrete 1.85V Red, 3V Green, 2.9V Blue 4-SMD, No Lead
Documents
Technical documentation and resources
