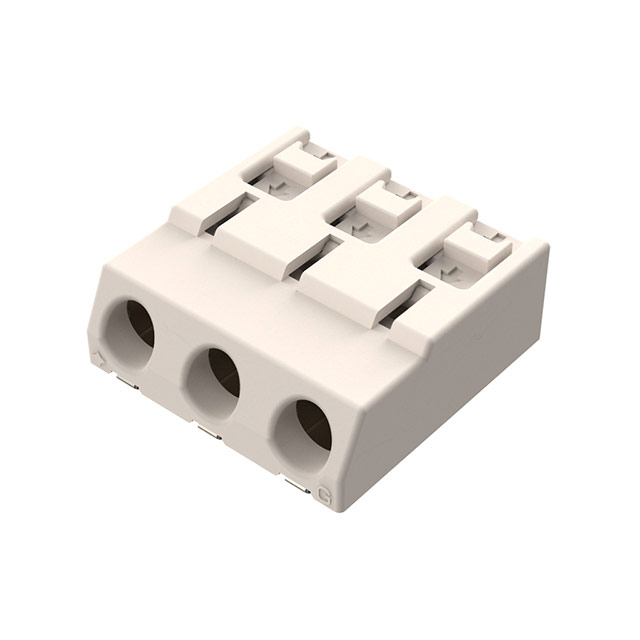

BJ302-03-A

Obsolete

GCT

WIRE TRAP PUSH IN, SMT, 4.00MM P

Search across all available documentation for this part.

Obsolete

GCT

WIRE TRAP PUSH IN, SMT, 4.00MM P

Technical Specifications

Parameters and characteristics commom to parts in this series

WIRE TRAP PUSH IN, SMT, 4.00MM P

Part	Housing Material	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Mounting Type	Contact Material	Housing Color	Style	Pitch [x]	Pitch [x]	Contact Finish	Current Rating (Amps)	Number of Positions
GCT BJ302-03-A	Liquid Crystal Polymer (LCP)	Poke-In Wire, Receptacle	Solder	-40 °C	105 ░C	24 AWG	17.5 AWG	50 V	Surface Mount, Right Angle	Copper Alloy	Natural	Board to Cable/Wire	4 mm	0.157 in	Tin	8 A
GCT BJ302-01-A	Liquid Crystal Polymer (LCP)	Poke-In Wire, Receptacle	Solder	-40 °C	105 ░C	24 AWG	17.5 AWG	50 V	Surface Mount, Right Angle	Copper Alloy	Natural	Board to Cable/Wire			Tin	8 A	1
GCT BJ302-02-A	Liquid Crystal Polymer (LCP)	Poke-In Wire, Receptacle	Solder	-40 °C	105 ░C	24 AWG	17.5 AWG	50 V	Surface Mount, Right Angle	Copper Alloy	Natural	Board to Cable/Wire	4 mm	0.157 in	Tin	8 A	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SSL Connector 3 Position Receptacle, Poke-In Wire Board to Cable/Wire 0.157" (4.00mm) Solder
