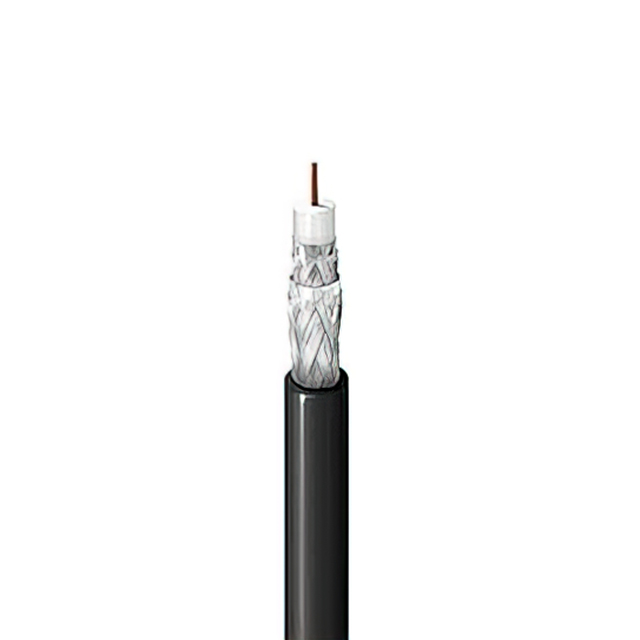

1189A 0091000
ActiveBelden Inc.
COAX 75 OHM RG6 18AWG
Deep-Dive with AI
Search across all available documentation for this part.
1189A 0091000
ActiveBelden Inc.
COAX 75 OHM RG6 18AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1189A 0091000 | 1189A Series |
|---|---|---|
| Cable Group | RG-6 | RG-6 |
| Cable Type | Coaxial | Coaxial |
| Conductor Material | Steel, Copper Coated | Steel, Copper Coated |
| Conductor Strand | Solid | Solid |
| Dielectric Diameter [diameter] | 0.18 in | 0.18 in |
| Dielectric Diameter [diameter] | 4.57 mm | 4.57 mm |
| Dielectric Material | Foam Polyethylene (FPE) | Foam Polyethylene (FPE) |
| Features | Quad Shield | Quad Shield |
| Impedance | 75 Ohms | 75 Ohms |
| Jacket (Insulation) Diameter [diameter] | 7.47 mm | 7.47 mm |
| Jacket (Insulation) Diameter [diameter] | 0.294 in | 0.294 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket Color | - | Black |
| Length | 304.8 m | 152.4 - 304.8 m |
| Length | 1000 ft | 1000 - 6000 ft |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Shield Coverage | 100 %, 60 %, 40 % | 40 - 100 % |
| Shield Material | Aluminum | Aluminum |
| Shield Type | Foil, Braid | Foil, Braid |
| Usage | CATV | CATV |
| VoP, Velocity of Propagation | 83 | 83 |
| Wire Gauge | 18 AWG | 18 AWG |
1189A Series
COAX 75 OHM RG6 18AWG
| Part | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand | Length | Length | Usage | Conductor Material | Shield Material | Jacket (Insulation) Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | VoP, Velocity of Propagation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Shield Type | Features | Impedance | Cable Group | Shield Coverage | Dielectric Material | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. 1189A 009N1000 | Coaxial | -40 °C | 80 C | Solid | 304.8 m | 1000 ft | CATV | Copper Coated, Steel | Aluminum | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.57 mm | 83 | 7.47 mm | 0.294 in | 18 AWG | Braid, Foil | Quad Shield | 75 Ohms | RG-6 | 40 %, 60 %, 100 % | Foam Polyethylene (FPE) | |
Belden Inc. 1189A 010U1000 | Coaxial | -40 °C | 80 C | Solid | 304.8 m | 1000 ft | CATV | Copper Coated, Steel | Aluminum | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.57 mm | 83 | 7.47 mm | 0.294 in | 18 AWG | Braid, Foil | Quad Shield | 75 Ohms | RG-6 | 40 %, 60 %, 100 % | Foam Polyethylene (FPE) | Black |
Belden Inc. 1189A 010U500 | Coaxial | -40 °C | 80 C | Solid | 152.4 m | 6000 in | CATV | Copper Coated, Steel | Aluminum | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.57 mm | 83 | 7.47 mm | 0.294 in | 18 AWG | Braid, Foil | Quad Shield | 75 Ohms | RG-6 | 40 %, 60 %, 100 % | Foam Polyethylene (FPE) | Black |
Belden Inc. 1189A 009U1000 | Coaxial | -40 °C | 80 C | Solid | 304.8 m | 1000 ft | CATV | Copper Coated, Steel | Aluminum | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.57 mm | 83 | 7.47 mm | 0.294 in | 18 AWG | Braid, Foil | Quad Shield | 75 Ohms | RG-6 | 40 %, 60 %, 100 % | Foam Polyethylene (FPE) | |
Belden Inc. 1189A 0091000 | Coaxial | -40 °C | 80 C | Solid | 304.8 m | 1000 ft | CATV | Copper Coated, Steel | Aluminum | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.57 mm | 83 | 7.47 mm | 0.294 in | 18 AWG | Braid, Foil | Quad Shield | 75 Ohms | RG-6 | 40 %, 60 %, 100 % | Foam Polyethylene (FPE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1189A Series
Coaxial Cable 18 AWG RG-6 1000.0' (304.80m) 75 Ohms
