1189A 010U500

Active

Belden Inc.

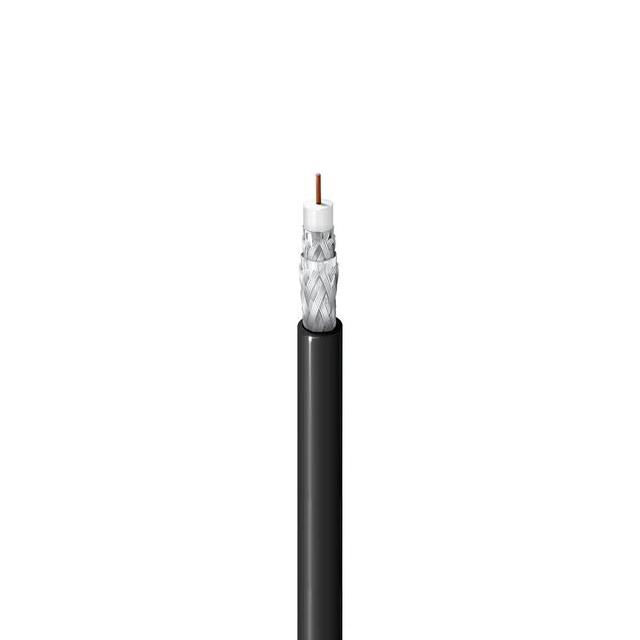

CABLE COAXIAL RG-6 18AWG 500'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Commercial AV Solutions

1189A 010U500

Active

Belden Inc.

CABLE COAXIAL RG-6 18AWG 500'

Deep-Dive with AI

DocumentsDatasheet Commercial AV Solutions

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1189A Series

Coaxial Cable 18 AWG RG-6 500.0' (152.40m) 75 Ohms

Documents

Technical documentation and resources

Datasheet

Commercial AV Solutions

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1189A 010U500	1189A Series

Cable Group	RG-6	RG-6
Cable Type	Coaxial	Coaxial
Conductor Material	Steel, Copper Coated	Steel, Copper Coated
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	0.18 in	0.18 in
Dielectric Diameter [diameter]	4.57 mm	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)	Foam Polyethylene (FPE)
Features	Quad Shield	Quad Shield
Impedance	75 Ohms	75 Ohms
Jacket (Insulation) Diameter [diameter]	7.47 mm	7.47 mm
Jacket (Insulation) Diameter [diameter]	0.294 in	0.294 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Black	Black
Length	152.4 m	152.4 - 304.8 m
Length	6000 in	1000 - 6000 ft
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Coverage	100 %, 60 %, 40 %	40 - 100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil, Braid	Foil, Braid
Usage	CATV	CATV
VoP, Velocity of Propagation	83	83
Wire Gauge	18 AWG	18 AWG

1189A Series

COAX 75 OHM RG6 18AWG

Part	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand	Length	Length	Usage	Conductor Material	Shield Material	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	VoP, Velocity of Propagation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Shield Type	Features	Impedance	Cable Group	Shield Coverage	Dielectric Material	Jacket Color
Belden Inc. 1189A 009N1000	Coaxial	-40 °C	80 C	Solid	304.8 m	1000 ft	CATV	Copper Coated, Steel	Aluminum	Poly-Vinyl Chloride (PVC)	0.18 in	4.57 mm	83	7.47 mm	0.294 in	18 AWG	Braid, Foil	Quad Shield	75 Ohms	RG-6	40 %, 60 %, 100 %	Foam Polyethylene (FPE)
Belden Inc. 1189A 010U1000	Coaxial	-40 °C	80 C	Solid	304.8 m	1000 ft	CATV	Copper Coated, Steel	Aluminum	Poly-Vinyl Chloride (PVC)	0.18 in	4.57 mm	83	7.47 mm	0.294 in	18 AWG	Braid, Foil	Quad Shield	75 Ohms	RG-6	40 %, 60 %, 100 %	Foam Polyethylene (FPE)	Black
Belden Inc. 1189A 010U500	Coaxial	-40 °C	80 C	Solid	152.4 m	6000 in	CATV	Copper Coated, Steel	Aluminum	Poly-Vinyl Chloride (PVC)	0.18 in	4.57 mm	83	7.47 mm	0.294 in	18 AWG	Braid, Foil	Quad Shield	75 Ohms	RG-6	40 %, 60 %, 100 %	Foam Polyethylene (FPE)	Black
Belden Inc. 1189A 009U1000	Coaxial	-40 °C	80 C	Solid	304.8 m	1000 ft	CATV	Copper Coated, Steel	Aluminum	Poly-Vinyl Chloride (PVC)	0.18 in	4.57 mm	83	7.47 mm	0.294 in	18 AWG	Braid, Foil	Quad Shield	75 Ohms	RG-6	40 %, 60 %, 100 %	Foam Polyethylene (FPE)
Belden Inc. 1189A 0091000	Coaxial	-40 °C	80 C	Solid	304.8 m	1000 ft	CATV	Copper Coated, Steel	Aluminum	Poly-Vinyl Chloride (PVC)	0.18 in	4.57 mm	83	7.47 mm	0.294 in	18 AWG	Braid, Foil	Quad Shield	75 Ohms	RG-6	40 %, 60 %, 100 %	Foam Polyethylene (FPE)
