10126-6000EL
Active3M

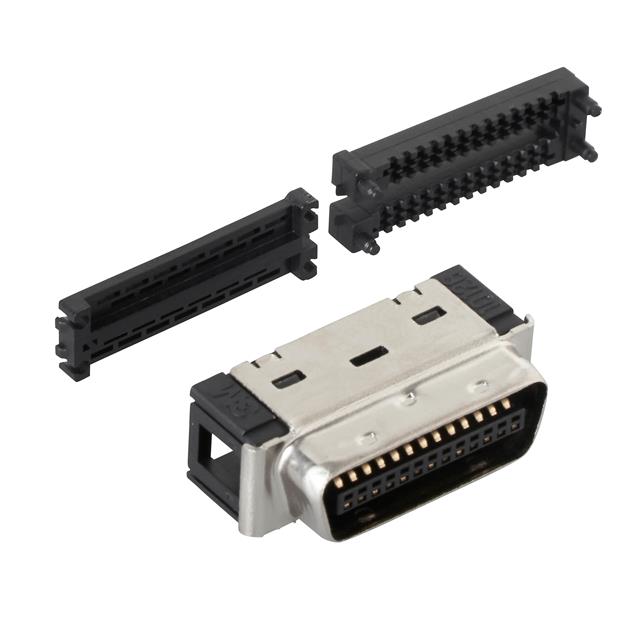

MICRO D SUB CONNECTOR, 101 SERIES, PLUG, 26, IDC / IDT, CABLE MOUNT, GOLD PLATED CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
10126-6000EL
Active3M
MICRO D SUB CONNECTOR, 101 SERIES, PLUG, 26, IDC / IDT, CABLE MOUNT, GOLD PLATED CONTACTS
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10126-6000EL | 10126 Series |
|---|---|---|
| Connector Style | - | Center Strip Contacts |
| Connector Type | - | Plug |
| Contact Finish | - | Gold |
| Contact Finish Thickness | - | Flash |
| Contact Finish Thickness | - | 0.203 - 0.76 Ám |
| Contact Finish Thickness | - | 8 - 30 Áin |
| Features | - | Shielded, Board Lock |
| Flange Feature | - | M2.5, Housing/Shell |
| Flange Feature | - | 2.6 M |
| Mounting Type | - | Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount, Board Edge, Straddle Mount |
| null | - | |
| Number of Positions | - | 26 |
| Number of Rows | - | 2 |
| Termination | - | Solder, IDC |
| Type | - | Board to Board |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
10126 Series
D SUB CONNECTOR, MINI D (RIBBON CONNECTOR), PLUG, 101 SERIES, 26 CONTACTS, SOLDER
| Part | Number of Positions | Mounting Type | Features | Number of Rows | Contact Finish Thickness | Connector Style | Connector Type | Contact Finish | Flange Feature | Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
26 | Free Hanging (In-Line) | Shielded | 2 | Flash | Center Strip Contacts | Plug | Gold | |||||||
26 | Panel Mount, Right Angle, Through Hole | Shielded | 2 | Center Strip Contacts | Plug | Gold | M2.5 | Board to Board | 0.76 Ám | 30 Áin | Solder | |||
26 | Free Hanging (In-Line) | Shielded | 2 | Center Strip Contacts | Plug | Gold | 0.76 Ám | 30 Áin | IDC | |||||
26 | Board Edge, Straddle Mount | Shielded | 2 | Center Strip Contacts | Plug | Gold | 0.203 çm | 8 çin | Solder | |||||
26 | Free Hanging (In-Line) | Shielded | 2 | Center Strip Contacts | Plug | Gold | 0.51 µm | 20 µin | ||||||
26 | Panel Mount, Right Angle, Through Hole | Board Lock, Shielded | 2 | Center Strip Contacts | Plug | Gold | Housing/Shell | Board to Board | 0.76 Ám | 30 Áin | Solder | 2.6 M |
