TC-600-TM-X
ActiveAmphenol Times Microwave Systems

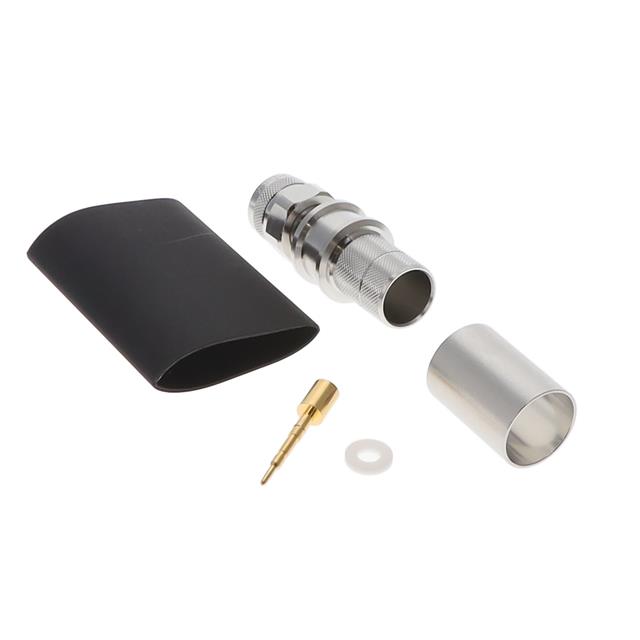

TNC-MALE (PLUG) CRIMP CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC-600-TM-X
ActiveAmphenol Times Microwave Systems
TNC-MALE (PLUG) CRIMP CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TC-600-TM-X | TC-600 Series |
|---|---|---|
| - | - | |
| Body Finish | White Bronze | Nickel, White Bronze, Silver, Tri-Metal |
| Body Material | Brass | Brass |
| Cable Group | LMR-600 | LMR-600, LMR-600-75 |
| Center Contact Material | Brass | Phosphor Bronze, Brass, Beryllium Copper |
| Center Contact Plating | Gold | Gold, Silver |
| Connector Style | TNC | RP-TNC, TNC, UHF, N Type, 7/16 DIN, QDS, HN Type, 4.3/10, LC |
| Connector Type | Male Pin, Plug | Plug, Female Socket, Jack, Male Pin |
| Contact Termination | Solder | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Snap-On |
| Frequency - Max [Max] | 6000 MHz | 1 - 6000 GHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Insertion Loss | - | 0.05 - 0.1 dB |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Bulkhead - Front Side Nut |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 85 - 165 °C |
| Operating Temperature [Min] | -55 °C | -65 - -40 °C |
| Shield Termination | Crimp | Crimp, Clamp |
| Voltage Rating | 500 V | 2.5 - 5000 V |
TC-600 Series
TNC-MALE (PLUG) CRIMP/REVERSE PO
| Part | Contact Termination | Cable Group | Impedance | Connector Style | Connector Type | Center Contact Material | Dielectric Material | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Termination | Housing Color | Center Contact Plating | Mounting Type | Voltage Rating | Body Finish | Number of Ports | Body Material | Mating Cycles | Ingress Protection | Insertion Loss | Fastening Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems TC-600-TM-RP | Solder | LMR-600 | 50 Ohms | RP-TNC | Female Socket, Plug | Phosphor Bronze | Polytetrafluoroethylene (PTFE) | 3 GHz | 85 °C | -40 °C | Crimp | Silver | Gold | Free Hanging (In-Line) | 500 V | Nickel | 1 | Brass | |||||
Amphenol Times Microwave Systems TC-600-UM-X | |||||||||||||||||||||||
Amphenol Times Microwave Systems TC-600-TF-X | Solder | LMR-600 | 50 Ohms | TNC | Female Socket, Jack | Phosphor Bronze | Polytetrafluoroethylene (PTFE) | 6000 MHz | 125 °C | -55 °C | Crimp | Silver | Gold | Free Hanging (In-Line) | 750 VDC | White Bronze | 1 | Brass | 500 | ||||
Amphenol Times Microwave Systems TC-600-UMC | Solder | LMR-600 | 50 Ohms | UHF | Male Pin, Plug | 2.5 GHz | 85 °C | -40 °C | Clamp | Silver | Gold | Free Hanging (In-Line) | Silver | 1 | |||||||||
Amphenol Times Microwave Systems TC-600-NMH-75/50 | Solder | LMR-600-75 | 50 Ohms | N Type | Male Pin, Plug | Brass | Polytetrafluoroethylene (PTFE) | 2 GHz | 85 °C | -40 °C | Crimp | Silver | Gold | Free Hanging (In-Line) | 1000 VDC | Nickel | 1 | Brass | |||||
Amphenol Times Microwave Systems TC-600-716M-X | Solder | LMR-600 | 50 Ohms | 7/16 DIN | Male Pin, Plug | Beryllium Copper, Brass | Polytetrafluoroethylene (PTFE) | 6000 MHz | 85 °C | -40 °C | Crimp | Silver | Silver | Free Hanging (In-Line) | White Bronze | 1 | Brass | IP67 - Dust Tight, Waterproof | 0.05 dB | ||||
Amphenol Times Microwave Systems TC-600-716MC | Solder | LMR-600 | 50 Ohms | 7/16 DIN | Male Pin, Plug | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 2.5 GHz | 85 °C | -40 °C | Clamp | Silver | Silver | Free Hanging (In-Line) | 2700 V | Silver | 1 | Brass | |||||
Amphenol Times Microwave Systems TC-600-TM-RA-D | Solder | LMR-600 | 50 Ohms | TNC | Male Pin, Plug | Brass | Polytetrafluoroethylene (PTFE) | 6000 MHz | 125 °C | -55 °C | Crimp | Silver | Gold | Free Hanging (In-Line), Right Angle | 500 V | White Bronze | 1 | Brass | 500 | ||||
Amphenol Times Microwave Systems TC-600-NMC-2-D | |||||||||||||||||||||||
Amphenol Times Microwave Systems TC-600-NF-PL | Solder | LMR-600 | 50 Ohms | N Type | Female Socket, Jack | Brass | Polytetrafluoroethylene (PTFE) | 6000 MHz | 85 °C | -40 °C | Crimp | Silver | Gold | Free Hanging (In-Line) | 1000 VDC | Silver | 1 | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 21.21 | |
| 10 | $ 18.57 | |||
| 25 | $ 17.77 | |||
| 50 | $ 17.20 | |||
| 100 | $ 16.62 | |||
| 250 | $ 15.71 | |||
| 500 | $ 15.25 | |||
Description
General part information
TC-600 Series
TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
