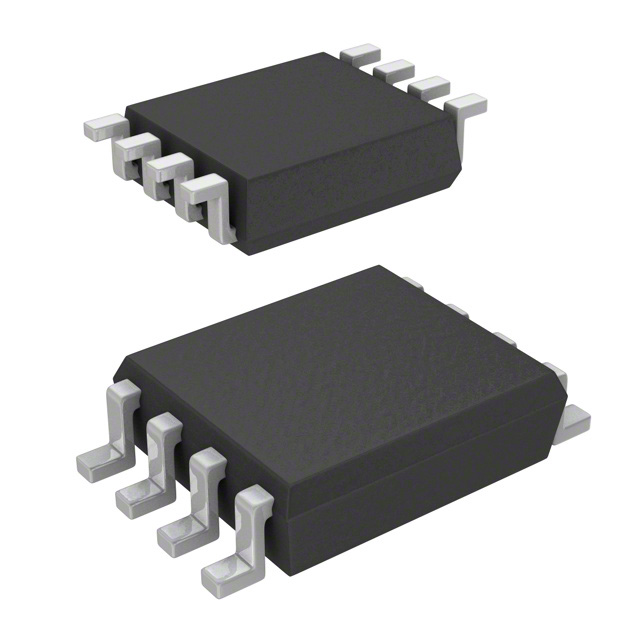

74LV2GT04AUSE-E

Active

Renesas Electronics Corporation

IC INVERTER 3CH 3-INP 8SSOP

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

IC INVERTER 3CH 3-INP 8SSOP

Technical Specifications

Parameters and characteristics for this part

Specification	74LV2GT04AUSE-E

Current - Output High, Low [custom]	12 mA
Current - Output High, Low [custom]	12 mA
Current - Quiescent (Max) [Max]	10 µA
Input Logic Level - High [Max]	2 V
Input Logic Level - High [Min]	1.5 V
Input Logic Level - Low [Max]	0.8 V
Input Logic Level - Low [Min]	0.6 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	10.5 ns
Mounting Type	Surface Mount
Number of Circuits	3
Number of Inputs	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-VFSOP
Package / Case [y]	2.3 mm
Package / Case [y]	0.091 in
Supplier Device Package	8-SSOP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3 V

IC INVERTER 3CH 3-INP 8SSOP

Part	Logic Type	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Max Propagation Delay @ V, Max CL	Supplier Device Package	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Number of Circuits	Number of Inputs	Package / Case [y]	Package / Case	Package / Case [y]	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Max) [Max]
Renesas Electronics Corporation 74LV2GT04AUSE-E	Inverter	Surface Mount	5.5 V	3 V	10.5 ns	8-SSOP	0.6 V	0.8 V	3	3	2.3 mm	8-VFSOP	0.091 in	1.5 V	2 V	12 mA	12 mA	85 °C	-40 °C	10 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Inverter IC 3 Channel 8-SSOP

Technical documentation and resources
