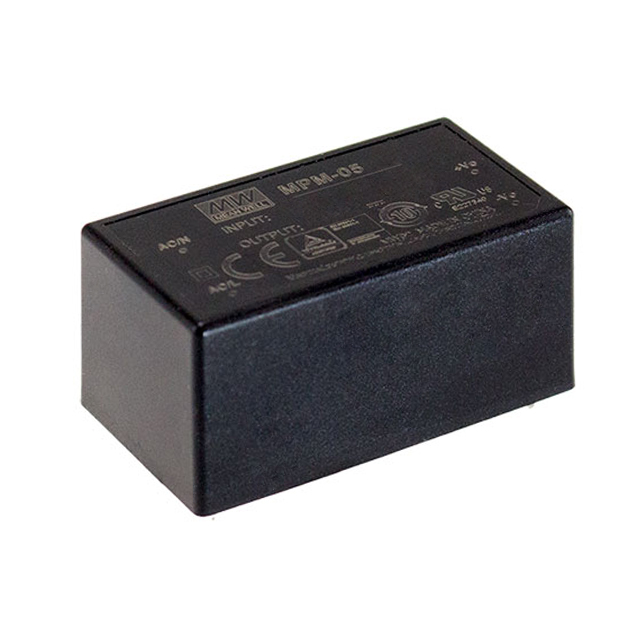

MPM-05-5

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 5W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Part	Line Regulation	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output (Max) [Max]	Approval Agency	Power (Watts)	Voltage - Output 1	Load Regulation	Efficiency	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Features	Mounting Type	Applications	Current - Output (Max)
MEAN WELL USA Inc. MPM-05-3.3	0.3 %	85 °C	-40 °C	Enclosed	1.25 A	CB CE cURus TUV	4.1 W	3.3 V	0.5 %	74 %	1	264 VAC	80 VAC	1.8 "	21.5 mm	0.85 "	45.7 mm	25.4 mm	25.4 mm	4-DIP Module	Universal Input	Through Hole	Medical
MEAN WELL USA Inc. MPM-05-5	0.3 %	85 °C	-40 °C	Enclosed	1 A	CB CE cURus TUV	5 W	5 V	0.5 %	80 %	1	264 VAC	80 VAC	1.8 "	21.5 mm	0.85 "	45.7 mm	25.4 mm	25.4 mm	4-DIP Module	Universal Input	Through Hole	Medical
MEAN WELL USA Inc. MPM-05-15	0.3 %	85 °C	-40 °C	Enclosed		CB CE cURus TUV	5 W	15 V	0.5 %	81 %	1	264 VAC	80 VAC	1.8 "	21.5 mm	0.85 "	45.7 mm	25.4 mm	25.4 mm	4-DIP Module	Universal Input	Through Hole	Medical	330 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 5V 1A 80 ~ 264 VAC Input
