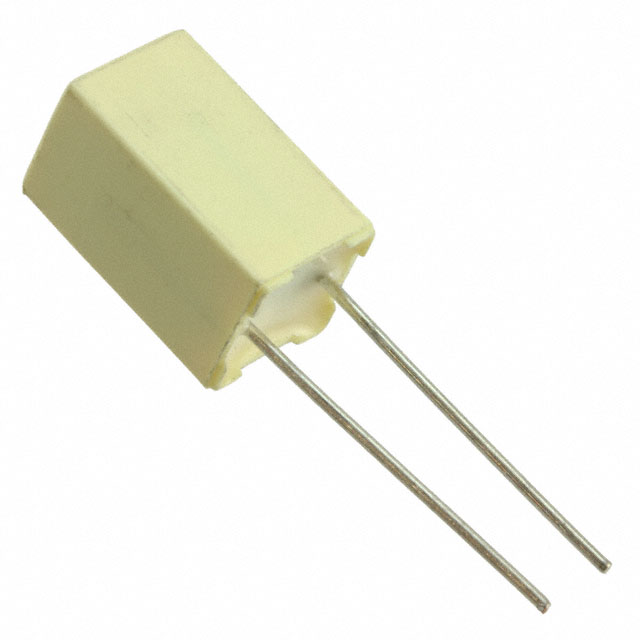

R82CC4100AA60J

Active

KEMET

CAP FILM 1UF 5% 50VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 1UF 5% 50VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	R82CC4100AA60J

Applications	Automotive
Capacitance	1 µF
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	30 V
Voltage Rating - DC	50 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Termination	Mounting Type	Package / Case	Applications	Capacitance	Ratings	Voltage Rating - DC	Voltage Rating - AC	Dielectric Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing
KEMET R82CC4100AA60J	105 ░C	-55 °C	5 %	PC Pins	Through Hole	Radial	Automotive	1 µF	AEC-Q200	50 VDC	30 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)
KEMET R82CC4220Z370K	105 ░C	-55 °C	10 %	PC Pins	Through Hole	Radial	Automotive	2.2 µF	AEC-Q200	50 VDC	30 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	7.2 mm	0.283 in	0.236 in	6 mm	0.437 in	11.1 mm	5 mm	0.197 in
KEMET R82CC4220Z370J	105 ░C	-55 °C	5 %	PC Pins	Through Hole	Radial	Automotive	2.2 µF	AEC-Q200	50 VDC	30 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	7.2 mm	0.283 in	0.236 in	6 mm	0.437 in	11.1 mm	5 mm	0.197 in
KEMET R82CC4220DQ70J	105 ░C	-55 °C	5 %	PC Pins	Through Hole	Radial	Automotive	2.2 µF	AEC-Q200	50 VDC	30 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	7.2 mm	0.283 in	0.236 in	6 mm	0.437 in	11.1 mm	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 µF Film Capacitor 30V 50V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
