2SJ598-ZK-E1-AZ

Active

Renesas Electronics Corporation

MOSFET, P-CH, 60V, 12A, TO-252 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

MOSFET, P-CH, 60V, 12A, TO-252 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	2SJ598-ZK-E1-AZ

Current - Continuous Drain (Id) @ 25°C	12 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On) [Max]	4 V
Drive Voltage (Max Rds On, Min Rds On) [Min]	10 V
FET Type	P-Channel
Input Capacitance (Ciss) (Max) @ Vds [Max]	720 pF
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power Dissipation (Max)	23 W, 1 W
Rds On (Max) @ Id, Vgs	130 mOhm
Supplier Device Package	MP-3ZK
Supplier Device Package	TO-252
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id [Max]	2.5 V

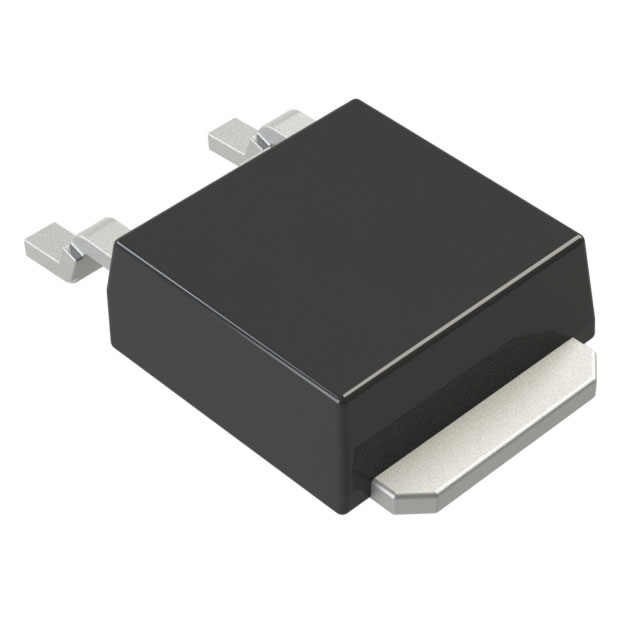

Pch Power MOSFET -60V -12A 130mohm TO-252 / DPAK

Part	Technology	FET Type	Mounting Type	Drain to Source Voltage (Vdss)	Power Dissipation (Max)	Package / Case	Supplier Device Package	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]	Operating Temperature	Vgs(th) (Max) @ Id [Max]	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)
Renesas Electronics Corporation 2SJ598-ZK-E1-AZ	MOSFET (Metal Oxide)	P-Channel	Surface Mount	60 V	1 W, 23 W	DPAK (2 Leads + Tab), SC-63, TO-252-3	MP-3ZK	TO-252	4 V	10 V	130 mOhm	720 pF	150 °C	2.5 V	12 A	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The 2SJ598 is P-channel MOS Field Effect Transistor designed for solenoid, motor and lamp driver.
