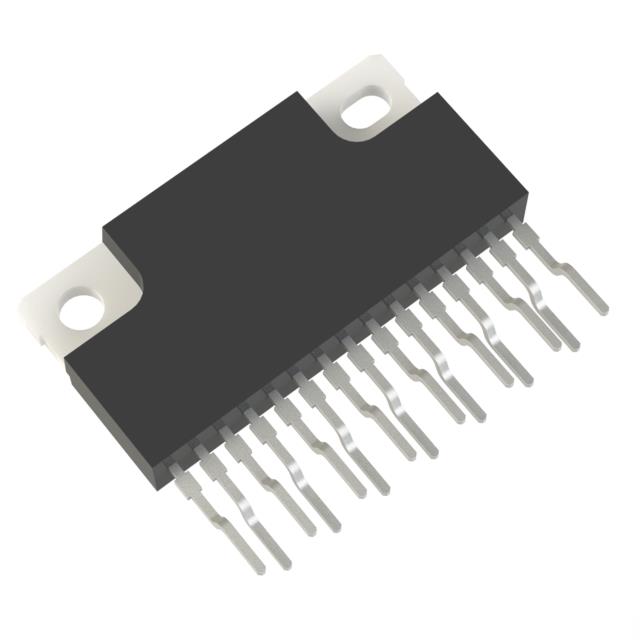

SLA7078MS
ObsoleteSanken Electric USA Inc.
IC MTR DRV UNIPOLAR 3-5.5V 23ZIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLA7078MS
ObsoleteSanken Electric USA Inc.
IC MTR DRV UNIPOLAR 3-5.5V 23ZIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLA7078MS |
|---|---|
| Applications | General Purpose |
| Current - Output | 3 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Parallel |
| Motor Type - Stepper | Unipolar |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Low Side (4) |
| Package / Case | 23-SSIP Formed Leads |
| Step Resolution | 1/16, 1, 1/4, 1/2, 1/8 |
| Supplier Device Package | 23-ZIP (SLA) LF 2151 |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 44 V |
| Voltage - Load [Min] | 10 V |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SLA7078 Series
Unipolar Motor Driver Power MOSFET Parallel 23-ZIP (SLA) LF 2151
