796867-4

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 4POS VERT 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796867-4

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 4POS VERT 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.72
		10	$ 5.86
		150	$ 5.21
		1050	$ 4.35

Description

General part information

796867 Series

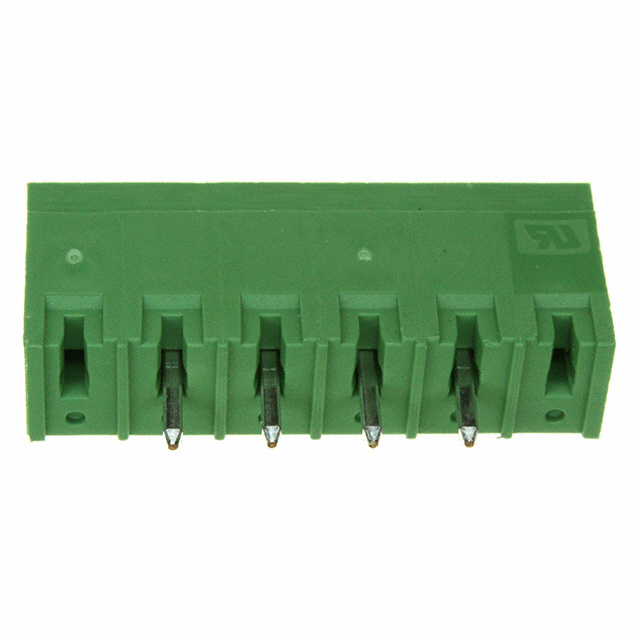

4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole

Documents

Technical documentation and resources

Datasheet

Specification	796867-4	796867 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Features	Mating Flange	Mating Flange
Header Orientation	Vertical	Vertical
Insulation Height	0.472 in	0.472 in
Insulation Height	12 mm	12 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	4	2 - 21
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	4	2 - 21
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

Part

Insulation Height

Termination Style

Number of Positions

Contact Mating Finish

Contact Material

Positions Per Level

Features

Pitch [x]
