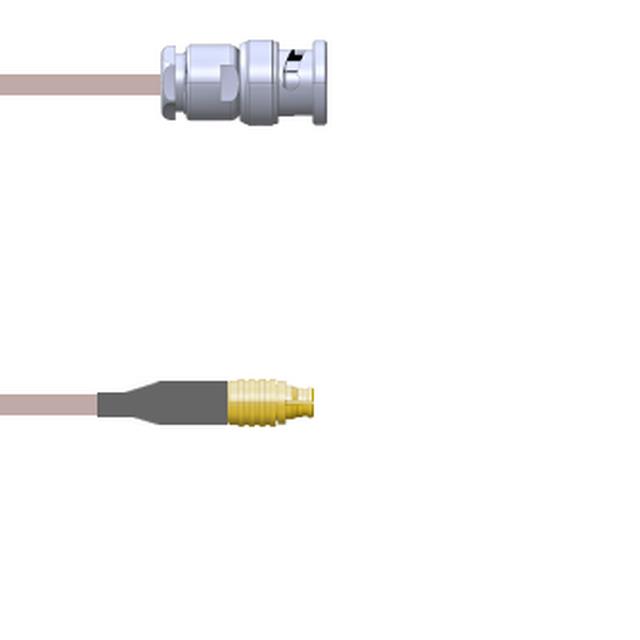

Q-0J0440005001M

Active

Amphenol Custom Cable

COAX CBL BNC TO SMP 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J0440005001M

Active

Amphenol Custom Cable

COAX CBL BNC TO SMP 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J0440005001M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMP Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to SMP

Q-0J0440 Series

Part	2nd Connector	Overall Impedance	Frequency - Max [Max]	1st Connector	2nd Contact Gender	Features	Style	1st Connector Mounting Type	2nd Connector Mounting Type	1st Contact Gender	Color	Cable Type	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0J0440003072i	SMP Plug	50 Ohms	4 GHz	BNC Plug	Male	Shielded	BNC to SMP	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Black	RG-174	6 ft	72 in	1.8 m
Amphenol Custom Cable Q-0J0440005012i	SMP Plug	50 Ohms	4 GHz	BNC Plug	Male	Shielded	BNC to SMP	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Copper	RG-316		12 "	304.8 mm
Amphenol Custom Cable Q-0J04400052.5M	SMP Plug	50 Ohms	4 GHz	BNC Plug	Male	Shielded	BNC to SMP	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Copper	RG-316	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-0J0440005018i	SMP Plug	50 Ohms	4 GHz	BNC Plug	Male	Shielded	BNC to SMP	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Copper	RG-316				457.2 mm	457.2 mm
Amphenol Custom Cable Q-0J0440005072i	SMP Plug	50 Ohms	4 GHz	BNC Plug	Male	Shielded	BNC to SMP	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Copper	RG-316	6 ft	72 in	1.8 m
Amphenol Custom Cable Q-0J0440005.75M	SMP Plug	50 Ohms	4 GHz	BNC Plug	Male	Shielded	BNC to SMP	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Copper	RG-316		29.53 "	750 mm
Amphenol Custom Cable Q-0J0440005084i	SMP Plug	50 Ohms	4 GHz	BNC Plug	Male	Shielded	BNC to SMP	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Copper	RG-316	7 ft	84 in	2.1 m
Amphenol Custom Cable Q-0J0440003024i	SMP Plug	50 Ohms	4 GHz	BNC Plug	Male	Shielded	BNC to SMP	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Black	RG-174		24 "	609.6 mm
Amphenol Custom Cable Q-0J0440005024i	SMP Plug	50 Ohms	4 GHz	BNC Plug	Male	Shielded	BNC to SMP	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Copper	RG-316		24 "	609.6 mm
Amphenol Custom Cable Q-0J0440005001M	SMP Plug	50 Ohms	4 GHz	BNC Plug	Male	Shielded	BNC to SMP	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Copper	RG-316	3.3 ft	39.4 in	1 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 112.64
		25	$ 110.43
		50	$ 108.23
		100	$ 106.03
		250	$ 103.83

Description

General part information

Q-0J0440 Series

Cable Assembly Coaxial BNC to SMP RG-316 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
