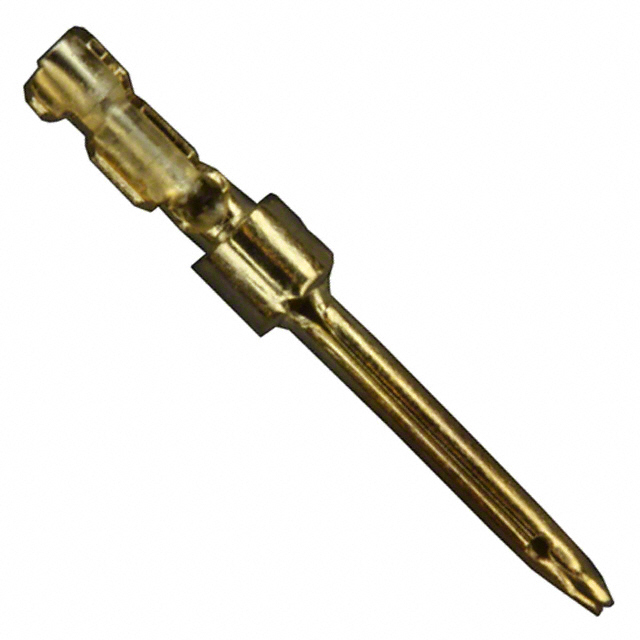

L17-RR-D2-M-02-100

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PIN 24-28AWG CRIMP

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PIN 24-28AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Features	Contact Finish	Contact Form	Wire Gauge [Min]	Wire Gauge [Max]	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Contact Material	Contact Finish Thickness
Amphenol ICC (Commercial Products) L17-RR-D2-M-02-100	Male Pin	Insulation Support	Gold	Stamped	24 AWG	28 AWG	Signal	15 µin	0.38 µm	Crimp
Amphenol ICC (Commercial Products) L17RRD2F112K	Female Socket	Insulation Support		Stamped	24 AWG	28 AWG	Signal	15 µin	0.38 µm	Crimp	Copper Alloy
Amphenol ICC (Commercial Products) L17RRD2M012G	Male Pin	Insulation Support	Gold	Stamped	24 AWG	28 AWG	Signal			Crimp	Copper Alloy	Flash
Amphenol ICC (Commercial Products) L17RRD2M12100	Male Pin	Insulation Support	Gold	Stamped	24 AWG	28 AWG	Signal	15 µin	0.38 µm	Crimp
Amphenol ICC (Commercial Products) L17RRD2M02400	Male Pin	Insulation Support	Gold	Stamped	24 AWG	28 AWG	Signal	15 µin	0.38 µm	Crimp	Copper Alloy
Amphenol ICC (Commercial Products) L17RRD2F14100	Female Socket	Insulation Support	Gold	Stamped	24 AWG	28 AWG	Signal	30 Áin	0.76 Ám	Crimp
Amphenol ICC (Commercial Products) L17-RR-D2-M-01-100	Male Pin	Insulation Support	Gold	Stamped	24 AWG	28 AWG	Signal	8 çin	0.203 çm	Crimp
Amphenol ICC (Commercial Products) L17RRD2M122G	Male Pin	Insulation Support		Stamped	24 AWG	28 AWG	Signal	15 µin	0.38 µm	Crimp	Copper Alloy
Amphenol ICC (Commercial Products) L17RRD2F11400	Female Socket	Insulation Support		Stamped	24 AWG	28 AWG	Signal	30 Áin	0.76 Ám	Crimp	Copper Alloy
Amphenol ICC (Commercial Products) L17RRD2M142G	Male Pin	Insulation Support		Stamped	24 AWG	28 AWG	Signal	30 Áin	0.76 Ám	Crimp	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

D-Sub Contact Male Pin Gold 24-28 AWG Crimp Stamped
