8060-1G4

Obsolete

TE Connectivity AMP Connectors

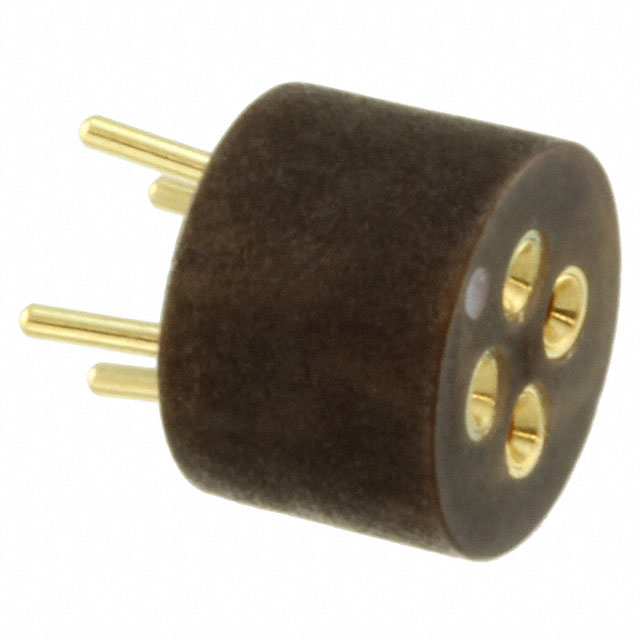

CONN TRANSIST TO-5 4POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN TRANSIST TO-5 4POS GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8060-1G4	8060 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post	Beryllium Copper	Beryllium Copper
Features	Closed Frame	Closed Frame
Housing Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	4	3 - 4
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Termination	Solder	Solder
Type	Transistor, TO-5	Transistor, TO-5

CONN TRANSIST TO-5 3POS GOLD

Part	Number of Positions or Pins (Grid)	Contact Finish - Mating	Termination	Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Features	Contact Material - Mating	Contact Material - Post	Mounting Type
TE Connectivity AMP Connectors 8060-1G34	3	Gold	Solder	Transistor, TO-5
TE Connectivity AMP Connectors 8060-1G17	3	Gold	Solder	Transistor, TO-5	Gold	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Closed Frame	Beryllium Copper	Beryllium Copper
TE Connectivity AMP Connectors 8060-1G11	3	Gold	Solder	Transistor, TO-5	Gold	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Closed Frame	Beryllium Copper	Beryllium Copper	Through Hole
TE Connectivity AMP Connectors 8060-1G3	3	Gold	Solder	Transistor, TO-5	Gold	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Closed Frame	Beryllium Copper	Beryllium Copper	Through Hole
TE Connectivity AMP Connectors 8060-1G7	3	Gold	Solder	Transistor, TO-5	Gold	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Closed Frame	Beryllium Copper	Beryllium Copper	Through Hole
TE Connectivity AMP Connectors 8060-1G4	4	Gold	Solder	Transistor, TO-5	Gold	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Closed Frame	Beryllium Copper	Beryllium Copper	Through Hole
TE Connectivity AMP Connectors 8060-1G5	3	Gold	Solder	Transistor, TO-5	Gold	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Closed Frame	Beryllium Copper	Beryllium Copper	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 (Round) Pos Transistor, TO-5 Socket Gold Through Hole
