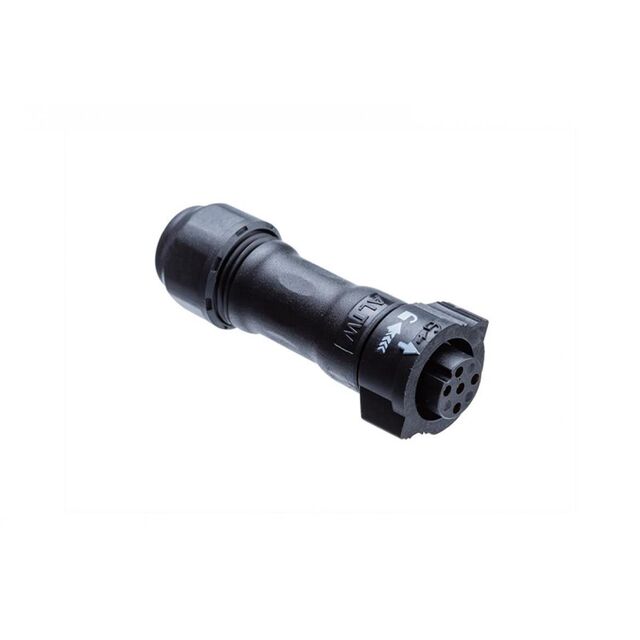

BD-02BFFA-QL8MN0

Active

Amphenol LTW

X-LOK, STANDARD SIZE, 5A, 02 PIN

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, STANDARD SIZE, 5A, 02 PIN

Technical Specifications

Parameters and characteristics for this part

Part	Primary Material	Shell Size - Insert	Contact Finish - Mating	Mounting Type	Number of Positions	Orientation	Ingress Protection	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell Material	Features	Fastening Type	Backshell Material, Plating	Insert Material	Contact Material	Color	Connector Type	Note	Contact Type	Housing Color	Contact Shape	Type
Amphenol LTW BD-02BFFA-LL6001	Plastic	B	Gold	Free Hanging (In-Line)	2	Keyed	IP66	5 A	-40 °C	105 ░C	Unshielded	Glass Filled Nylon Polyamide (PA)	Backshell Coupling Nut	Bayonet Lock	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Copper Alloy	Black	Female Sockets Plug
Amphenol LTW BD-02BFFA-QL8MN0	Plastic	B		Free Hanging (In-Line)	2	Keyed	IP68 - Dust Tight Waterproof		-40 °C	105 ░C	Unshielded		Backshell			Thermoplastic			Plug Housing	Contacts Not Included	Crimp	Black	Circular	For Female Sockets
Amphenol LTW BD-02BFFA-LL7001	Plastic	B	Gold	Free Hanging (In-Line)	2	Keyed	IP67 - Dust Tight Waterproof	5 A	-40 °C	105 ░C	Unshielded	Glass Filled Nylon Polyamide (PA)	Backshell Coupling Nut	Bayonet Lock	Nylon Polyamide (PA)		Copper Alloy	Black	Female Sockets Plug
Amphenol LTW BD-02BFFA-QL8LN0	Plastic	B		Free Hanging (In-Line)	2	Keyed	IP68 - Dust Tight Waterproof		-40 °C	105 ░C	Unshielded		Backshell			Thermoplastic			Plug Housing	Contacts Not Included	Crimp	Black	Circular	For Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 5.59

General part information

2 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell

Technical documentation and resources

No documents available
