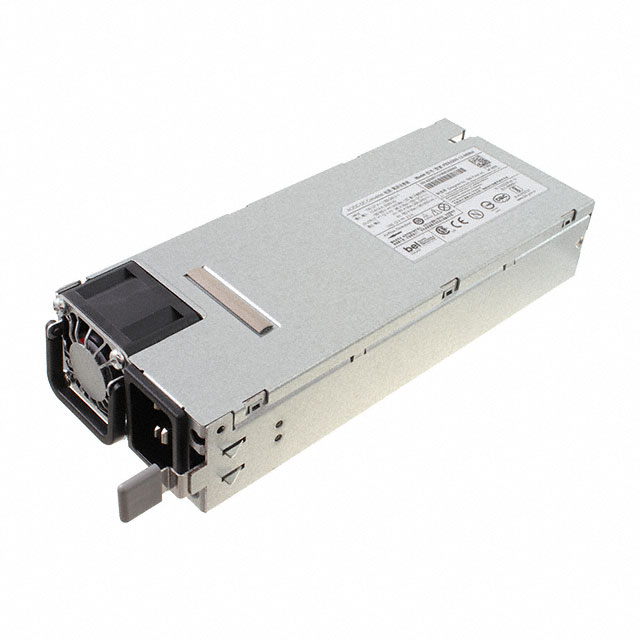

PES2200-12-080NA

Active

Bel Power Solutions

AC/DC CONVERTER 12V 2196W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 2196W

Technical Specifications

Parameters and characteristics for this part

Specification	PES2200-12-080NA

Applications	ITE (Commercial)
Approval Agency	CE, CB
Current - Output 1	183 A
Efficiency	95 %
Features	Load Sharing, Standby Output, PFC, Remote Sense, Adjustable Output
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	2196 W
Size / Dimension [x]	195 mm
Size / Dimension [x]	7.68 "
Size / Dimension [y]	3.15 in
Size / Dimension [y]	80 mm
Size / Dimension [z]	40 mm
Size / Dimension [z]	1.57 "
Type	Front End
Voltage - Input [Max]	140 VAC, 300 VDC, 264 VAC
Voltage - Input [Min]	180 VAC, 90 VAC, 180 V
Voltage - Isolation	4.242 kV
Voltage - Output 1	12 V

AC/DC CONVERTER 12V 2196W

Part	Type	Features	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Voltage - Output 1	Current - Output 1	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Mounting Type	Approval Agency	Voltage - Isolation	Efficiency
Bel Power Solutions PES2200-12-080NA	Front End	Adjustable Output, Load Sharing, PFC, Remote Sense, Standby Output	140 VAC, 264 VAC, 300 VDC	90 VAC, 180 VAC, 180 V	2196 W	12 V	183 A	1	195 mm	40 mm	3.15 in	7.68 "	80 mm	1.57 "	ITE (Commercial)	Rack Mount	CB, CE	4.242 kV	95 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 140 VAC, 180 ~ 264 VAC, 180 ~ 300 VDC Input
