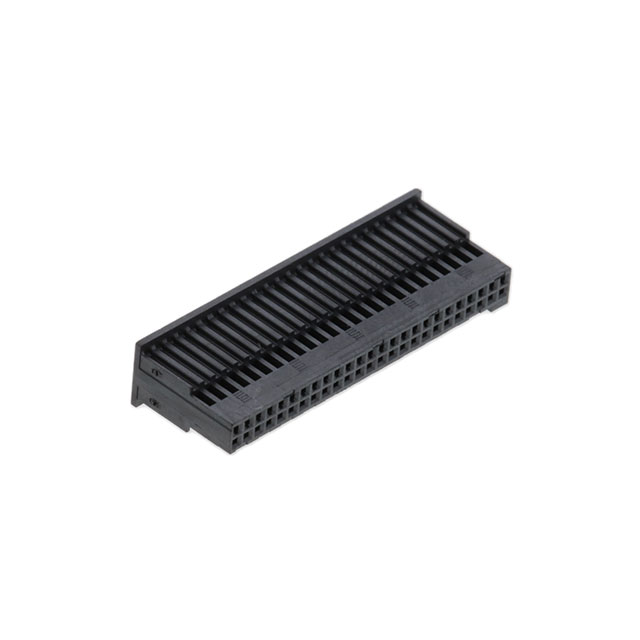

ISDF-25-D

Active

Samtec Inc.

CONN HOUSING RCP 50 POS 1.27MM CRIMP ST CABLE MOUNT BLACK TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HOUSING RCP 50 POS 1.27MM CRIMP ST CABLE MOUNT BLACK TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Material	Number of Rows	Connector Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Note	Contact Type	Color	Mounting Type	Fastening Type	Pitch [x]	Pitch [x]	Features	Number of Positions	Row Spacing	Row Spacing
Samtec Inc. ISDF-25-S-R	Liquid Crystal Polymer (LCP)	1	Insulator	Crimp	-55 °C	125 °C	Contacts Not Included	Female Socket	Black	Free Hanging (In-Line)	Latch Lock	0.05 in	1.27 mm
Samtec Inc. ISDF-25-D-S	Liquid Crystal Polymer (LCP)	2	Insulator	Crimp	-55 °C	125 °C	Contacts Not Included	Female Socket	Black	Free Hanging (In-Line)	Latch Lock	0.05 in	1.27 mm	Mating Flange	50	1.27 mm	0.05 in
Samtec Inc. ISDF-25-D-R	Liquid Crystal Polymer (LCP)	2	Insulator	Crimp	-55 °C	125 °C	Contacts Not Included	Female Socket	Black	Free Hanging (In-Line)	Latch Lock	0.05 in	1.27 mm		50	1.27 mm	0.05 in
Samtec Inc. ISDF-25-S-M	Liquid Crystal Polymer (LCP)	1	Insulator	Crimp	-55 °C	125 °C	Contacts Not Included	Female Socket	Black	Free Hanging (In-Line)	Latch Lock	0.05 in	1.27 mm	Retention Latches
Samtec Inc. ISDF-25-D	Liquid Crystal Polymer (LCP)	2	Insulator	Crimp	-55 °C	125 °C	Contacts Not Included	Female Socket	Black	Free Hanging (In-Line)	Latch Lock	0.05 in	1.27 mm		50	1.27 mm	0.05 in
