DWHF-19/6-0-SP
ActiveTE Connectivity Raychem Cable Protection
DWHF-19/6-0-SP
Deep-Dive with AI
Search across all available documentation for this part.
DWHF-19/6-0-SP
ActiveTE Connectivity Raychem Cable Protection
DWHF-19/6-0-SP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DWHF-19/6-0-SP |
|---|---|
| Color | Black |
| Features | Adhesive Lined, Flame Retardant |
| Inner Diameter - Recovered | 5.99 mm |
| Inner Diameter - Recovered | 0.236 in |
| Inner Diameter - Supplied [diameter] | 0.748 in |
| Inner Diameter - Supplied [diameter] | 19 mm |
| Length | 150 m |
| Length | 492.1 ft |
| Material | Polyolefin (PO), Irradiated, Halogen Free |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 2.26 mm |
| Recovered Wall Thickness | 0.089 in |
| Shelf Life | 60 Months |
| Shrink Temperature | 110 °C |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Storage/Refrigeration Temperature [Max] | 35 °C |
| Storage/Refrigeration Temperature [Min] | 0 °C |
| Type | Semi-Flexible, Tubing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 4050 | $ 5.77 | |
Description
General part information
RAYCHEM DWHF Series

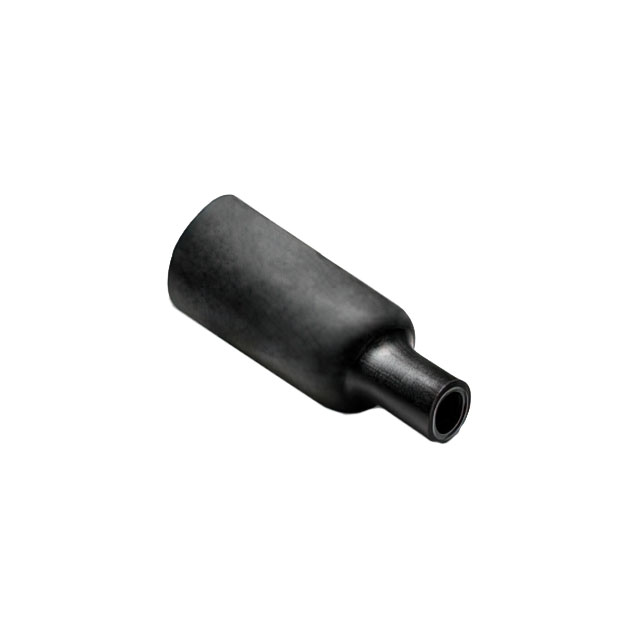

Heat Shrink Tubing, Black, 3:1, Dual Wall, Shrinks To 6 mm [.236 in], Irradiated Modified Polyolefin, 19 mm [.748 in] Expanded Inside, RAYCHEM DWHF
