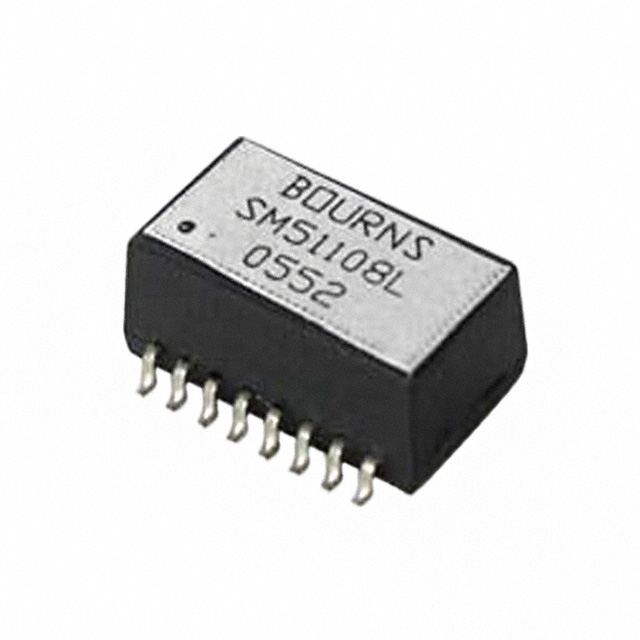

SM51108EL

Obsolete

Bourns Inc.

PULSE XFMR 1CT:1CT 350UH

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PULSE XFMR 1CT:1CT 350UH

Technical Specifications

Parameters and characteristics for this part

Specification	SM51108EL

Height - Seated (Max) [Max]	5.45 mm
Height - Seated (Max) [Max] [z]	0.215 "
Inductance	350 µH
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	12 mm
Size / Dimension [x]	0.472 in
Size / Dimension [y]	0.276 in
Size / Dimension [y]	7 mm
Transformer Type	LAN 10/100 Base-T
Turns Ratio - Primary:Secondary [custom]	1CT
Turns Ratio - Primary:Secondary [custom]	1CT

Part	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Transformer Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Inductance	Mounting Type
Bourns Inc. SM51108EL	1CT	1CT	LAN 10/100 Base-T	12 mm	0.472 in	0.276 in	7 mm	85 °C	-40 °C	5.45 mm	0.215 "	350 µH	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Surface Mount
