3-1393806-4

Obsolete

TE Connectivity Potter & Brumfield Relays

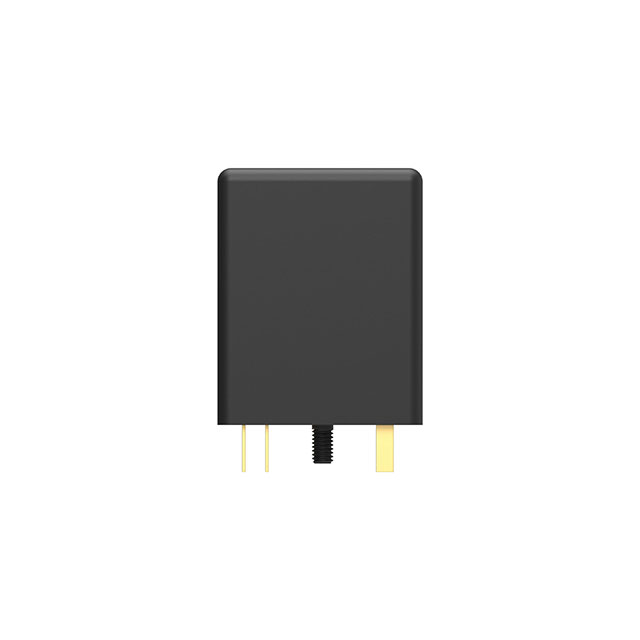

RELAY GEN PURPOSE DPST 5A 1.1V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-1393806-4

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPST 5A 1.1V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-1393806-4

Coil Current	16.7 mA
Coil Resistance	2 Ohms
Coil Type	Non Latching
Coil Voltage	1.1 VDC
Contact Form	DPST-NO/NC
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	5 A
Mounting Type	Socketable
Must Operate Voltage	0.4 VDC
Operate Time	7.5 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	3 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Plug In

V23154 Series

Part	Contact Rating (Current)	Mounting Type	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Release Time	Switching Voltage	Contact Form	Termination Style	Relay Type	Contact Material	Coil Resistance	Coil Voltage	Must Operate Voltage	Load - Max Switching	Coil Current
TE Connectivity Potter & Brumfield Relays 6-1393807-2	5 A	Socketable	Non Latching	-40 °C	70 °C	7.5 ms	3 ms	250 VAC 250 VDC	DPDT (2 Form C)	Plug In	General Purpose	Gold (Au) Silver (Ag)
TE Connectivity Potter & Brumfield Relays 1-1393810-7	5 A	Through Hole	Non Latching	-40 °C	70 °C	7.5 ms	3 ms	250 VAC 250 VDC		PC Pin	General Purpose	Gold (Au) Silver (Ag)
TE Connectivity Potter & Brumfield Relays 6-1393809-0	5 A	Socketable	Non Latching	-40 °C	70 °C	7.5 ms	3 ms	125 VAC 150 VDC	DPDT (2 Form C)	Plug In	General Purpose	Silver (Ag)	4700 Ohms	60 VDC	27 VDC	625 VA 750 W	16.7 mA
TE Connectivity Potter & Brumfield Relays 3-1393806-9	5 A	Socketable	Non Latching	-40 °C	70 °C	7.5 ms	3 ms	125 VAC 150 VDC	DPST-NO (2 Form A)	Plug In	General Purpose	Silver (Ag)	20.9 kOhms	125 VDC	61 VDC	625 VA 750 W	16.7 mA
TE Connectivity Potter & Brumfield Relays 3-1393810-2	5 A	Through Hole	Non Latching	-40 °C	70 °C	7.5 ms	3 ms	125 VAC 150 VDC	DPST-NO (2 Form A)	PC Pin	General Purpose	Silver (Ag)	890 Ohms	24 VDC	11 VDC	625 VA 750 W	16.7 mA
TE Connectivity Potter & Brumfield Relays 3-1393806-4	5 A	Socketable	Non Latching	-40 °C	70 °C	7.5 ms	3 ms	250 VAC 250 VDC	DPST-NO/NC	Plug In	General Purpose	Gold (Au) Silver (Ag)	2 Ohms	1.1 VDC	0.4 VDC		16.7 mA
TE Connectivity Potter & Brumfield Relays 7-1393810-5	5 A	Through Hole	Non Latching	-40 °C	70 °C	7.5 ms	3 ms	125 VAC 150 VDC	DPDT (2 Form C)	PC Pin	General Purpose	Silver (Ag)	890 Ohms	24 VDC	11 VDC	625 VA 750 W	16.7 mA
TE Connectivity Potter & Brumfield Relays 5-1393807-3	5 A	Socketable	Non Latching	-40 °C	70 °C	7.5 ms	3 ms	250 VAC 250 VDC	DPDT (2 Form C)	Plug In	General Purpose	Gold (Au) Silver (Ag)
TE Connectivity Potter & Brumfield Relays 9-1393810-0	5 A	Through Hole	Non Latching	-40 °C	70 °C	7.5 ms	3 ms	125 VAC 150 VDC	DPDT (2 Form C)	PC Pin	General Purpose	Silver (Ag)	4700 Ohms	60 VDC	27 VDC	625 VA 750 W	16.7 mA
TE Connectivity Potter & Brumfield Relays 1393807-2	5 A	Socketable	Non Latching	-40 °C	70 °C	7.5 ms	3 ms	125 VAC 150 VDC	DPST-NO (2 Form A)	Plug In	General Purpose	Silver (Ag)	1.7 kOhms	32 VDC	16 VDC	625 VA 750 W	19.4 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

V23154 Series

General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 1.1VDC Coil Socketable
