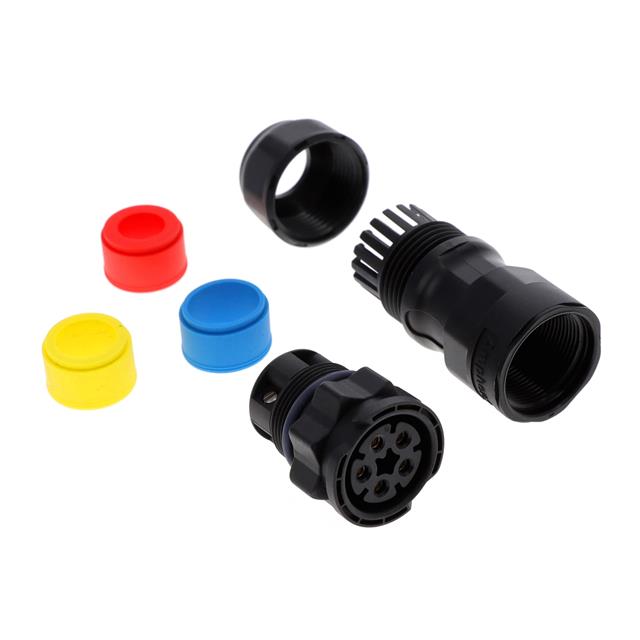

DC-05BMFB-QL8APP

Active

Amphenol LTW

CONN RCPT FMALE 5P SILVER SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DC-05BMFB-QL8APP

Active

Amphenol LTW

CONN RCPT FMALE 5P SILVER SCREW

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC-05BMFB-QL8APP

Cable Opening [Max] [custom]	0.551 in
Cable Opening [Max] [custom]	14 mm
Cable Opening [Min] [custom]	0.315 in
Cable Opening [Min] [custom]	8 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	D
Shielding	Unshielded
Termination	Screw
Voltage Rating	300 VAC

DC-05BMFB Series

Part	Shell Size - Insert	Insert Material	Backshell Material, Plating	Primary Material	Mounting Type	Features	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Termination	Shielding	Voltage Rating	Ingress Protection	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Orientation	Contact Material	Color	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Material Flammability Rating	Number of Positions
Amphenol LTW DC-05BMFB-QL8MPP	D	Thermoplastic	Thermoplastic	Plastic	Free Hanging (In-Line)	Backshell	20 A	10 mm 12 mm	0.394 in 0.472 in	Screw	Unshielded	300 VDC	IP68 - Dust Tight Waterproof	Bayonet Lock	Female Sockets Plug	-40 °C	105 ░C	Silver	Keyed	Copper Alloy	Black
Amphenol LTW DC-05BMFB-QL8APP	D	Polyamide (PA) Nylon Glass Filled		Plastic	Free Hanging (In-Line)	Backshell	20 A			Screw	Unshielded	300 VAC	IP68 - Dust Tight Waterproof	Push-Pull	Receptacle Female Sockets	-40 °C	105 ░C	Silver	Keyed	Copper Alloy	Black	0.315 in	0.551 in	8 mm	14 mm	UL94 V-0	5
Amphenol LTW DC-05BMFB-QL8LPP	D	Thermoplastic	Thermoplastic	Plastic	Free Hanging (In-Line)	Backshell	20 A			Screw	Unshielded	300 VDC	IP68 - Dust Tight Waterproof	Bayonet Lock	Female Sockets Plug	-40 °C	105 ░C	Silver	Keyed	Copper Alloy	Black	0.472 in	0.551 in	12 mm	14 mm
Amphenol LTW DC-05BMFB-QL8SPP	D	Thermoplastic	Thermoplastic	Plastic	Free Hanging (In-Line)	Backshell	20 A			Screw	Unshielded	300 VDC	IP68 - Dust Tight Waterproof	Bayonet Lock	Female Sockets Plug	-40 °C	105 ░C	Silver	Keyed	Copper Alloy	Black	0.315 in	0.394 in	8 mm	10 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.96
		10	$ 15.37
		25	$ 13.91
		50	$ 12.92
		100	$ 12.03
		250	$ 10.97
		500	$ 10.26
		1000	$ 9.68

Description

General part information

DC-05BMFB Series

5 (4 Power + PE) Position Circular Connector Receptacle, Female Sockets Screw

Documents

Technical documentation and resources

No documents available
