482W101-10-CA-003

Active

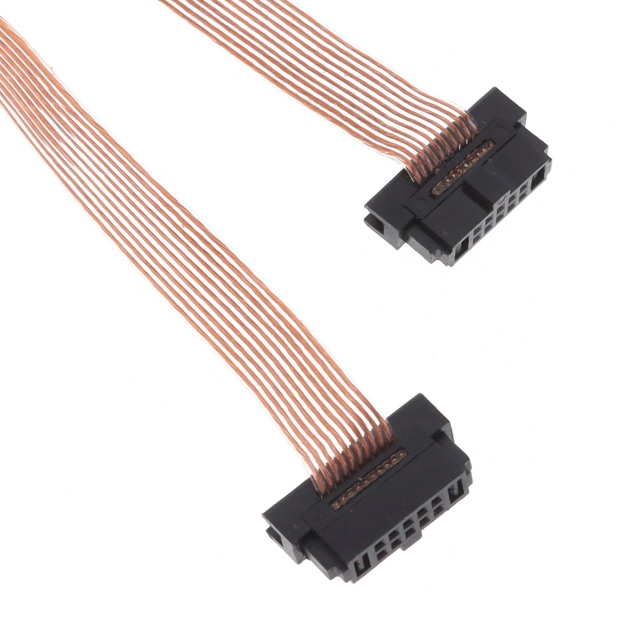

IDC RIBBON CABLE ASSEMBLY 3' 10C

Active

IDC RIBBON CABLE ASSEMBLY 3' 10C

Description

General part information

10 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)

Parameters and characteristics for this part

Part	Pitch - Cable	Pitch - Connector	Cable Termination	Number of Positions	Color	Number of Rows	Length	Shielding	Connector Type	Features	Voltage	Operating Temperature (Max)	Operating Temperature (Min)	Ribbon Thickness	Ribbon Width	Wire Gauge	Pitch	Jacket Color	Number of Conductors	Length	Cable Type	Conductor Material	Current Rating
Cicoil 482W101-20-CA-006	0.025 in	0.025 in	IDC	20	Clear Ribbon	1	6 ft	Unshielded	Socket to Socket	Friction Lock
Cicoil 482W101-16-CA-012	0.025 in	0.025 in	IDC	16	Clear Ribbon	1	12 ft	Unshielded	Socket to Socket	Friction Lock
Cicoil 482W101-34-250							5 ft 10 ft 100 ft 250 ft	Unshielded			300 V	500 °F	-65 °C	0.026 in	0.85 in	30 AWG	0.025 in	Clear	34	Enter Number of Feet in Order Quantity	Flat Cable	Bare Copper	0.2 A
Cicoil 482W101-26-CA-012	0.025 in	0.025 in	IDC	26	Clear Ribbon	1	12 ft	Unshielded	Socket to Socket	Friction Lock
Cicoil 482W101-14-250							5 ft 25 ft 250 ft	Unshielded			300 V	500 °F	-65 °C	0.026 in	0.35 in	30 AWG	0.025 in	Clear	14	Enter Number of Feet in Order Quantity	Flat Cable	Bare Copper	0.2 A
Cicoil 482W101-34-CA-003	0.025 in	0.025 in	IDC	34	Clear Ribbon	1	3 ft	Unshielded	Socket to Socket	Friction Lock
Cicoil 482W101-20-CA-003	0.025 in	0.025 in	IDC	20	Clear Ribbon	1	3 ft	Unshielded	Socket to Socket	Friction Lock
Cicoil 482W101-10-CA-003	0.025 in	0.025 in	IDC	10	Clear Ribbon	1	3 ft	Unshielded	Socket to Socket	Friction Lock
Cicoil 482W101-14-CA-003	0.025 in	0.025 in	IDC	14	Clear Ribbon	1	3 ft	Unshielded	Socket to Socket	Friction Lock
Cicoil 482W101-10-CA-006	0.025 in	0.025 in	IDC	10	Clear Ribbon	1	6 ft	Unshielded	Socket to Socket	Friction Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
