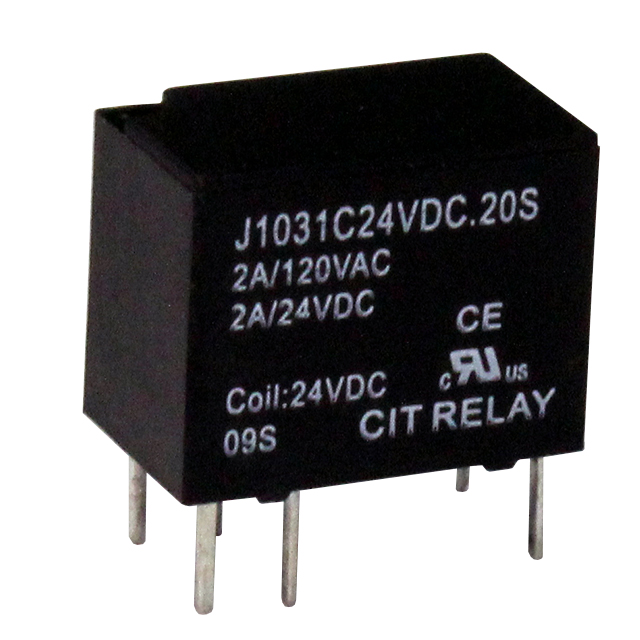

J1031C24VDC.20S
ActiveCIT Relay and Switch
RELAY GEN PURPOSE SPDT 2A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
J1031C24VDC.20S
ActiveCIT Relay and Switch
RELAY GEN PURPOSE SPDT 2A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | J1031C24VDC.20S |
|---|---|
| Coil Current | 8.3 mA |
| Coil Resistance | 2.88 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 120 W, 250 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 4.5 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 1.5 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage [Max] | 125 VAC, 60 VDC |
| Termination Style | PC Pin |
J1031C Series
| Part | Coil Resistance | Contact Form | Termination Style | Release Time | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Seal Rating | Must Release Voltage | Load - Max Switching | Mounting Type | Must Operate Voltage | Coil Voltage | Switching Voltage [Max] | Coil Type | Contact Material | Contact Rating (Current) | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CIT Relay and Switch | 3.84 kOhms | SPDT (1 Form C) | PC Pin | 1.5 ms | General Purpose | 85 °C | -40 °C | 4.5 ms | Sealed - Fully | 2.4 VDC | 120 W 250 VA | Through Hole | 18 VDC | 24 VDC | 60 VDC 125 VAC | Non Latching | Gold (Au) Silver (Ag) | 2 A | 6.3 mA |
CIT Relay and Switch | 2.88 kOhms | SPDT (1 Form C) | PC Pin | 1.5 ms | General Purpose | 85 °C | -40 °C | 4.5 ms | Sealed - Fully | 2.4 VDC | 120 W 250 VA | Through Hole | 18 VDC | 24 VDC | 60 VDC 125 VAC | Non Latching | Gold (Au) Silver (Ag) | 2 A | 8.3 mA |
CIT Relay and Switch | SPDT (1 Form C) | PC Pin | 1.5 ms | General Purpose | 85 °C | -40 °C | 4.5 ms | Sealed - Fully | 0.9 VDC | 120 W 250 VA | Through Hole | 6.75 VDC | 9 VDC | 60 VDC 125 VAC | Non Latching | Gold (Au) Silver (Ag) | 2 A | 16.7 mA | |
CIT Relay and Switch | 180 Ohms | SPDT (1 Form C) | PC Pin | 1.5 ms | General Purpose | 85 °C | -40 °C | 4.5 ms | Sealed - Fully | 0.6 VDC | 120 W 250 VA | Through Hole | 4.5 VDC | 60 VDC 125 VAC | Non Latching | Gold (Au) Silver (Ag) | 2 A | 33.3 mA | |
CIT Relay and Switch | 960 Ohms | SPDT (1 Form C) | PC Pin | 1.5 ms | General Purpose | 85 °C | -40 °C | 4.5 ms | Sealed - Fully | 1.2 VDC | 120 W 250 VA | Through Hole | 9 VDC | 12 VDC | 60 VDC 125 VAC | Non Latching | Gold (Au) Silver (Ag) | 2 A | |
CIT Relay and Switch | 60 Ohms | SPDT (1 Form C) | PC Pin | 1.5 ms | General Purpose | 85 °C | -40 °C | 4.5 ms | Sealed - Fully | 0.3 VDC | 120 W 250 VA | Through Hole | 2.25 VDC | 60 VDC 125 VAC | Non Latching | Gold (Au) Silver (Ag) | 2 A | 50 mA | |
CIT Relay and Switch | 240 Ohms | SPDT (1 Form C) | PC Pin | 1.5 ms | General Purpose | 85 °C | -40 °C | 4.5 ms | Sealed - Fully | 0.6 VDC | 120 W 250 VA | Through Hole | 4.5 VDC | 60 VDC 125 VAC | Non Latching | Gold (Au) Silver (Ag) | 2 A | ||
CIT Relay and Switch | 405 Ohms | SPDT (1 Form C) | PC Pin | 1.5 ms | General Purpose | 85 °C | -40 °C | 4.5 ms | Sealed - Fully | 0.9 VDC | 120 W 250 VA | Through Hole | 6.75 VDC | 9 VDC | 60 VDC 125 VAC | Non Latching | Gold (Au) Silver (Ag) | 2 A | 22.2 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.28 | |
| 10 | $ 1.20 | |||
| 25 | $ 1.07 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.86 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.75 | |||
| 5000 | $ 0.72 | |||
Description
General part information
J1031C Series
General Purpose Relay SPDT (1 Form C) Through Hole
