2HT-1000-2-BK-S

Active

BRADY

SLEEVE, 1 IN DIA X 2 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 1 IN DIA X 2 IN W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 756.46

General part information

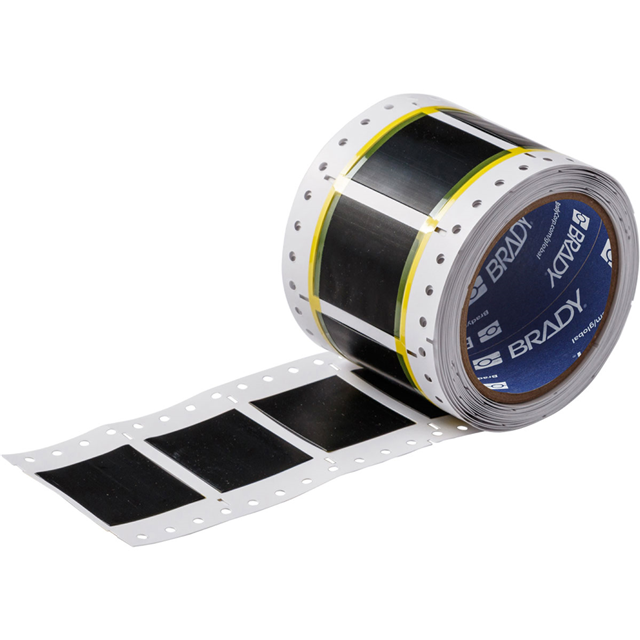

Black Heat Shrinkable Label 2.00" W x 1.66" H (50.8mm x 42.2mm); Cable O.D. 0.45" ~ 0.95" (11.4mm ~ 24.1mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2HT-1000-2-BK-S	2HT-1000 Series

	-	-
Color	Black	Pink, Yellow, Black, White
Label Size	-	1 - 50.8 "
Label Size	-	1 "
Label Size [Max]	24.1 mm	24.1 mm
Label Size [Max]	0.95 "	0.95 "
Label Size [Min]	11.4 mm	11.4 mm
Label Size [Min]	0.45 "	0.45 "
Label Size [x]	2 "	1 - 2 "
Label Size [x]	50.8 mm	50.8 mm
Label Size [y]	1.66 in	1.66 in
Label Size [y]	42.2 mm	42.2 mm
Label Type	Heat Shrinkable	Heat Shrinkable
Material	Polyvinylidene Fluoride (PVDF)	Polyvinylidene Fluoride (PVDF), Polyvinyl Fluoride
Operating Temperature [Max]	225 °C	225 °C
Operating Temperature [Min]	-55 °C	-55 °C

SLEEVE, 1 IN DIA X 2 IN W

Part	Color	Label Type	Material	Label Size [y]	Label Size [Min]	Label Size [Min]	Label Size [x]	Label Size [x]	Label Size [Max]	Label Size [y]	Label Size [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Label Size	Label Size [diameter]
BRADY 2HT-1000-2-PK-S	Pink	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	1.66 in	11.4 mm	0.45 "	2 "	50.8 mm	24.1 mm	42.2 mm	0.95 "	-55 °C	225 °C
BRADY 2HT-1000-2-YL-S	Yellow	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	1.66 in	11.4 mm	0.45 "	2 "	50.8 mm	24.1 mm	42.2 mm	0.95 "	-55 °C	225 °C
BRADY 2HT-1000-2-BK-S	Black	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	1.66 in	11.4 mm	0.45 "	2 "	50.8 mm	24.1 mm	42.2 mm	0.95 "	-55 °C	225 °C
BRADY 2HT-1000-2-WT-S	White	Heat Shrinkable	Polyvinyl Fluoride			0.45 "	2 "				0.95 "	-55 °C	225 °C	1 ", 11.4 mm, 24.1 mm, 50.8 mm	1 "
BRADY 2HT-1000-2-WT-J	White	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	1.66 in	11.4 mm	0.45 "	2 "	50.8 mm	24.1 mm	42.2 mm	0.95 "	-55 °C	225 °C
BRADY 2HT-1000-2-WT-S-2	White	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	1.66 "		0.45 "	1 "				0.95 "	-55 °C	225 °C
BRADY 2HT-1000-2-BK-S-2
BRADY 2HT-1000-2-YL-S-2	Yellow	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	1.66 "		0.45 "	1 "				0.95 "	-55 °C	225 °C
BRADY 2HT-1000-2-PK-S-2	Pink	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	1.66 "		0.45 "	1 "				0.95 "	-55 °C	225 °C
