5423-0.75-5

Active

3M (TC)

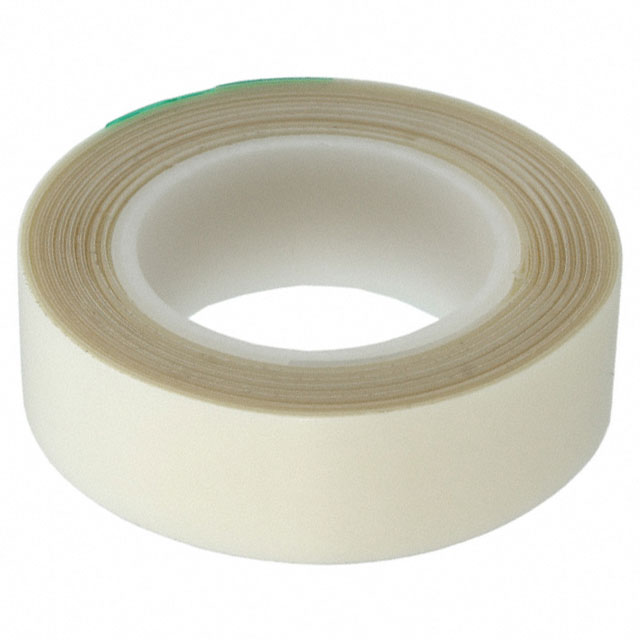

TAPE POLYETHYLENE CLR 3/4"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5423-0.75-5

Active

3M (TC)

TAPE POLYETHYLENE CLR 3/4"X5YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5423-0.75-5

Adhesive	Rubber
Backing, Carrier	UHMW Polyethylene
Color	Clear
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Polyethylene
Temperature Range [Max]	107 °C
Temperature Range [Max]	225 °F
Temperature Range [Min]	-30 °F
Temperature Range [Min]	-34 °C
Thickness	0.297 mm
Thickness	0.0117 in
Thickness	11.7 mils
Thickness - Adhesive	0.0017 in
Thickness - Adhesive	1.7 mils
Thickness - Adhesive	0.043 mm
Thickness - Backing, Carrier	0.01 "
Thickness - Backing, Carrier	0.254 mm
Thickness - Backing, Carrier	10 mils
Usage	General Purpose
Width	0.75 in
Width	19.05 mm
Width	0.75 in

5423 Series

Part	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness	Thickness	Thickness	Shelf Life Start	Shelf Life	Length	Length	Length	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Color	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width [x]	Width [x]	Backing, Carrier	Tape Type	Adhesive	Width	Width	Width	Width [y]	Width [y]	Usage	Thickness - Adhesive
3M (TC) 3M 5423 5.67" X 36YD	2 mils	0.051 mm	0.002 "	0.01 "	0.254 mm	10 mils	0.012 in	12 mils	0.305 mm	Date of Manufacture	18 Months	36 yd	32.9 m	108 ft	107 °C	-30 °F	225 °F	-34 °C	Clear	16 °C 60 °F	27 °C 80 °F	144 mm	5.67 in	UHMW Polyethylene	Polyethylene	Rubber
3M (TC) 3M 5423 0.313" X 36YD	2 mils	0.051 mm	0.002 "	0.01 "	0.254 mm	10 mils	0.012 in	12 mils	0.305 mm	Date of Manufacture	18 Months	36 yd	32.9 m	108 ft	107 °C	-30 °F	225 °F	-34 °C	Clear	16 °C 60 °F	27 °C 80 °F			UHMW Polyethylene	Polyethylene	Rubber	0.3125 in	0.31 in	7.87 mm
3M (TC) 0.625-5-5423	2 mils	0.051 mm	0.002 "	0.01 "	0.254 mm	10 mils	0.012 in	12 mils	0.305 mm	Date of Manufacture	18 Months	5 yd	4.6 m	15 ft	107 °C	-30 °F	225 °F	-34 °C	Clear	16 °C 60 °F	27 °C 80 °F			UHMW Polyethylene	Polyethylene	Rubber	0.625 in	0.63 in	16 mm
3M (TC) 3M 5423 2.25" X 36YD	2 mils	0.051 mm	0.002 "	0.01 "	0.254 mm	10 mils	0.012 in	12 mils	0.305 mm	Date of Manufacture	18 Months	36 yd	32.9 m	108 ft	107 °C	-30 °F	225 °F	-34 °C	Clear	16 °C 60 °F	27 °C 80 °F			UHMW Polyethylene	Polyethylene	Rubber				57.15 mm	2.25 in
3M (TC) 5423-0.5-5	1.7 mils	0.043 mm		0.01 "	0.254 mm	10 mils	0.0117 in	11.7 mils	0.297 mm	Date of Manufacture	18 Months	5 yd	4.6 m	15 ft	107 °C	-30 °F	225 °F	-34 °C	Clear	16 °C 60 °F	27 °C 80 °F			UHMW Polyethylene	Polyethylene	Rubber	0.5 in	0.5 in	12.7 mm			General Purpose	0.0017 in
3M (TC) 3M 5423 7" X 36YD	2 mils	0.051 mm	0.002 "	0.01 "	0.254 mm	10 mils	0.012 in	12 mils	0.305 mm	Date of Manufacture	18 Months	36 yd	32.9 m	108 ft	107 °C	-30 °F	225 °F	-34 °C	Clear	16 °C 60 °F	27 °C 80 °F	177.8 mm	7 in	UHMW Polyethylene	Polyethylene	Rubber
3M (TC) 5423-0.75-5	1.7 mils	0.043 mm		0.01 "	0.254 mm	10 mils	0.0117 in	11.7 mils	0.297 mm	Date of Manufacture	18 Months	5 yd	4.6 m	15 ft	107 °C	-30 °F	225 °F	-34 °C	Clear	16 °C 60 °F	27 °C 80 °F			UHMW Polyethylene	Polyethylene	Rubber	19.05 mm	0.75 in	0.75 in			General Purpose	0.0017 in
3M (TC) 5423-0.625-36	2 mils	0.051 mm	0.002 "	0.01 "	0.254 mm	10 mils	0.012 in	12 mils	0.305 mm	Date of Manufacture	18 Months	36 yd	32.9 m	108 ft	107 °C	-30 °F	225 °F	-34 °C	Clear	16 °C 60 °F	27 °C 80 °F			UHMW Polyethylene	Polyethylene	Rubber	0.625 in	0.63 in	16 mm
3M (TC) 3M 5423 1.89" X 36YD	2 mils	0.051 mm	0.002 "	0.01 "	0.254 mm	10 mils	0.012 in	12 mils	0.305 mm	Date of Manufacture	18 Months	36 yd	32.9 m	108 ft	107 °C	-30 °F	225 °F	-34 °C	Clear	16 °C 60 °F	27 °C 80 °F			UHMW Polyethylene	Polyethylene	Rubber				48 mm	1.89 in
3M (TC) 3M 5423 10" X 36YD	2 mils	0.051 mm	0.002 "	0.01 "	0.254 mm	10 mils	0.012 in	12 mils	0.305 mm	Date of Manufacture	18 Months	36 yd	32.9 m	108 ft	107 °C	-30 °F	225 °F	-34 °C	Clear	16 °C 60 °F	27 °C 80 °F		10 in	UHMW Polyethylene	Polyethylene	Rubber			254 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 79.55
		10	$ 61.35
		25	$ 55.68
		50	$ 51.88
		100	$ 48.46

Description

General part information

5423 Series

Polyethylene Tape Rubber Adhesive Clear 0.75" (19.05mm) 3/4" X 15' (4.6m) 5 yds

Documents

Technical documentation and resources
