ACGRTS4001-HF

Active

Comchip Technology

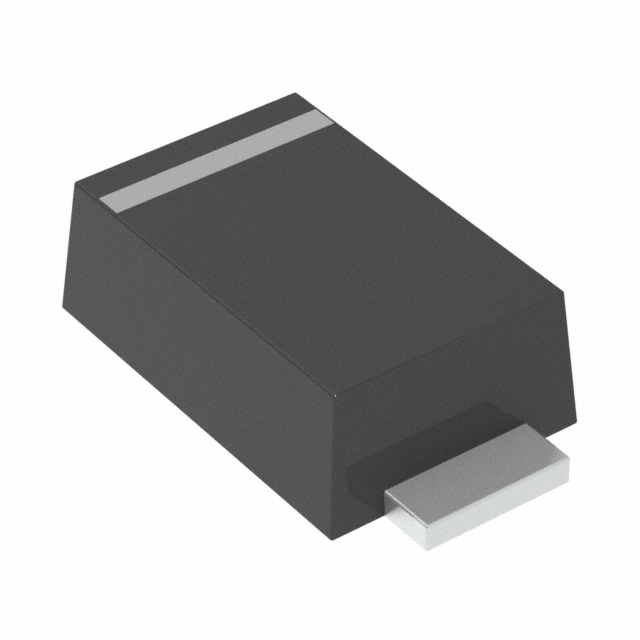

DIODE GP 50V 1A TS/SOD123FL

Search across all available documentation for this part.

Active

Comchip Technology

DIODE GP 50V 1A TS/SOD123FL

Technical Specifications

Parameters and characteristics for this part

Specification	ACGRTS4001-HF

Capacitance @ Vr, F	6 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123F
Qualification	AEC-Q101
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	TS/SOD-123FL
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	50 V
Voltage - Forward (Vf) (Max) @ If	1 V

DIODE GP 50V 1A TS/SOD123FL

Part	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Technology	Package / Case	Qualification	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Speed	Speed	Grade	Current - Average Rectified (Io)	Mounting Type	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Comchip Technology ACGRTS4001-HF	10 µA	1 V	Standard	SOD-123F	AEC-Q101	50 V	6 pF	Standard Recovery >500ns	200 mA	Automotive	1 A	Surface Mount	TS/SOD-123FL	150 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 50 V 1A Surface Mount TS/SOD-123FL
