178.6165.0002
ActiveHOLDER - FLR (ATO) PCB 80V 4-PIN 500 PC
178.6165.0002
ActiveHOLDER - FLR (ATO) PCB 80V 4-PIN 500 PC
Description
General part information
178.6165.0002 Series

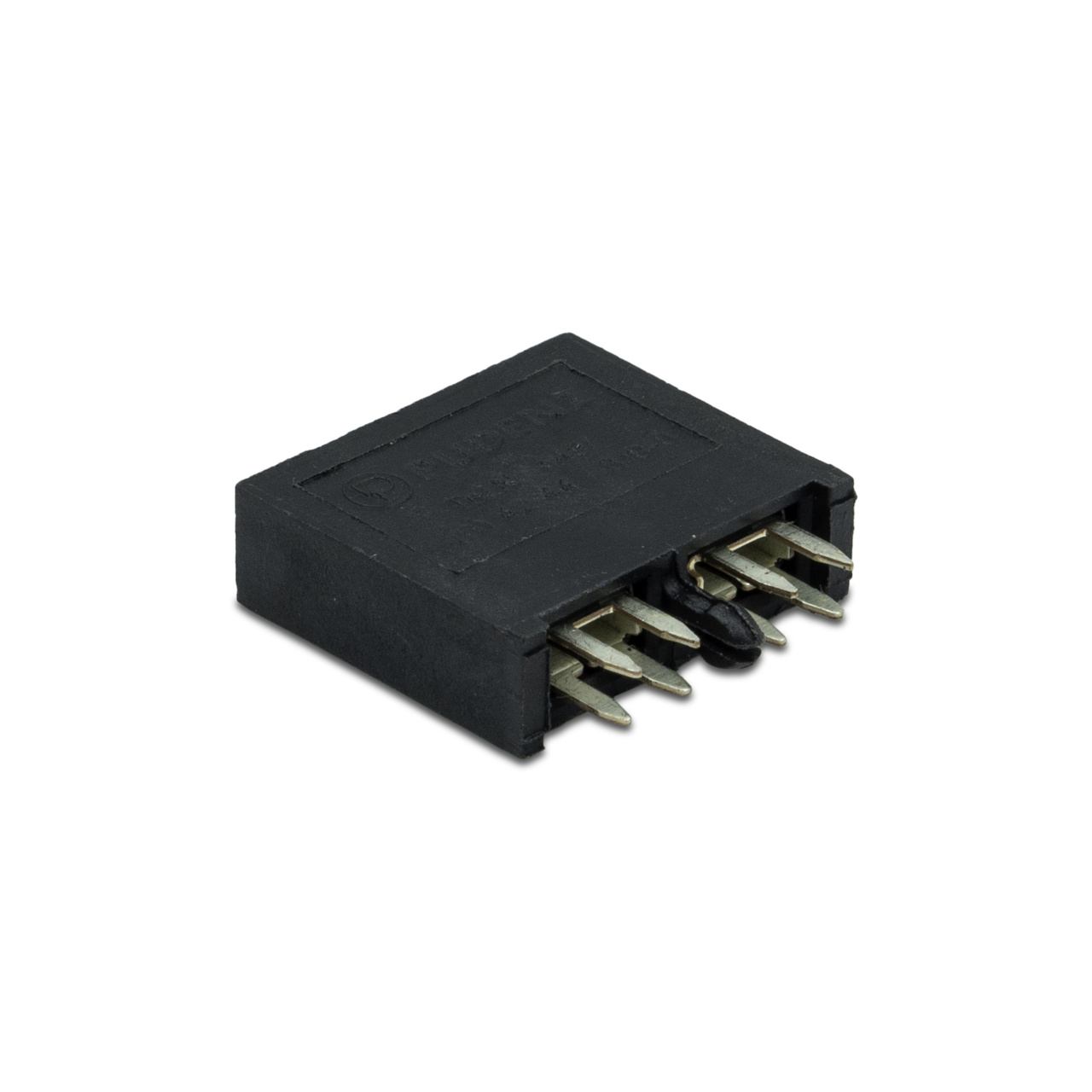

The ATO® FLR Series 32 V 30 A Printed Circuit Board (PCB) Fuse Holder (178.6165.0002) accepts ATO® blade-style fuses and is designed with leaf spring connectors. The fuse holder housing is made from black thermoplastic with a UL 94 V-0 flammability rating for heat and fire resistance. On the bottom center of the fuse holder, you will find a locking feature, which helps secure the housing to a PCB prior to soldering. The fuse holder's 4-pin soldering terminals are made from silver-plated copper alloy.
Technical Specifications
Parameters and characteristics for this part
| Specification | 178.6165.0002 |
|---|---|
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 30 A |
| For Use With/Related Products | ATC, ATO |
| Fuse Length | 0.75 in |
| Fuse Type | Blade |
| Fuse Width | 0.2 in |
| Fuseholder Type | Holder |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage | 80 V |
