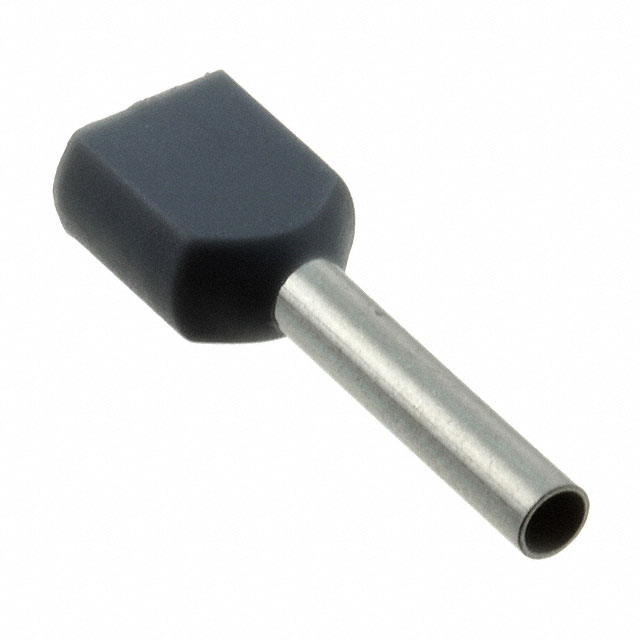

966144-3
ActiveTE Connectivity AMP Connectors
CONN FERRULE DIN TWO X 18AWG GRY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
966144-3
ActiveTE Connectivity AMP Connectors
CONN FERRULE DIN TWO X 18AWG GRY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 966144-3 | 966144 Series |
|---|---|---|
| Color | Gray | Gray |
| Insulation | Insulated | Insulated |
| Length - Overall [x] | 17 mm | 15 - 17 mm |
| Length - Pin [x] | 10 mm | 8 - 10 mm |
| Size | 0.75 mm² | 0.75 mm² |
| Size [custom] | Two | Two |
| Size [custom] | 18 AWG | 18 AWG |
| Style | DIN | DIN |
| Type | Two Wire | Two Wire |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.25 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.15 | |||
| 2500 | $ 0.13 | |||
966144 Series
CONN FERRULE DIN TWO X 18AWG GRY
Description
General part information
966144 Series
Gray Wire Ferrule Connector DIN Two x 18 AWG (0.75mm²) Two Wire
Documents
Technical documentation and resources
