13001 GR001

Active

ALPHA WIRE

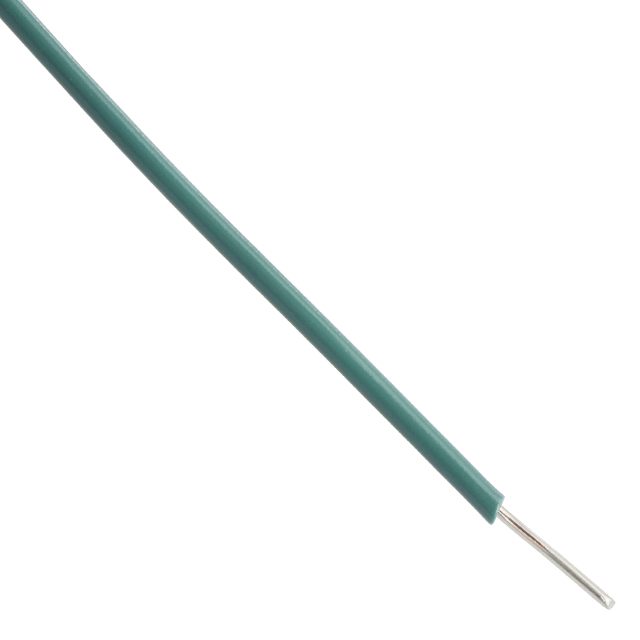

HOOK-UP SOLID 30AWG GREEN 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

HOOK-UP SOLID 30AWG GREEN 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	13001 GR001

Cable Type	Hook-Up
Conductor Material	Copper, Silver Coated
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	0.03 in
Jacket (Insulation) Diameter [diameter]	0.76 mm
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Green
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-60 °C
Qualification	MIL-DTL-16878/4 Type E
Voltage	600 V
Wire Gauge	30 AWG

HOOK-UP SOLID 30AWG GREEN 1000'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Wire Gauge	Conductor Strand	Length	Length	Qualification	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Jacket Color
ALPHA WIRE 13001 GR001	0.03 in	0.76 mm	Hook-Up	30 AWG	Solid	1000 ft	304.8 m	MIL-DTL-16878/4 Type E	Copper, Silver Coated	200 °C	-60 °C	Polytetrafluoroethylene (PTFE)	0.25 mm	0.01 in	600 V	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 AWG Hook-Up Wire Solid Green 600V 1000.0' (304.8m)
