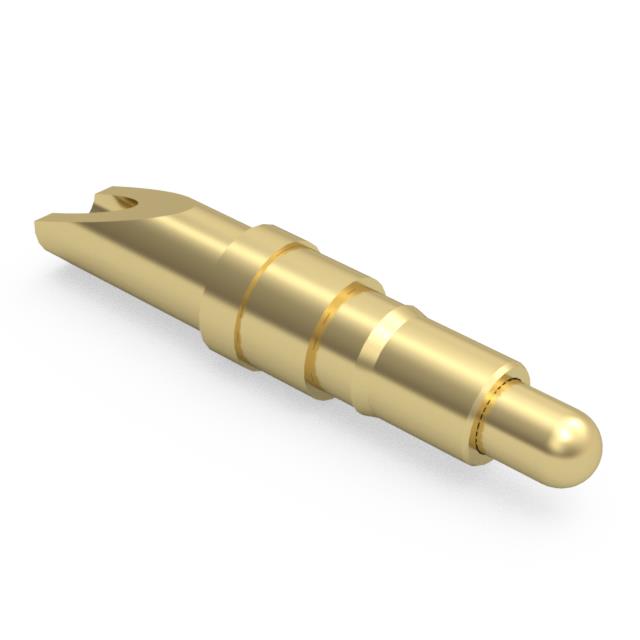

0933-1-15-20-75-14-11-0
ActiveMill-Max Manufacturing Corp.
SPRING-LOADED PIN WITH SOLDER CU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0933-1-15-20-75-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 5.2 A |
| Features | 24 AWG |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 5.74 mm |
| Maximum Working Height [Max] | 0.226 in |
| Minimum Working Height [Min] | 4.34 mm |
| Minimum Working Height [Min] | 0.171 in |
| Mounting Type | Solder Cup, Through Hole |
| Operating Force - Initial | 10 gf |
| Operating Force - Mid Compression | 60 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension | Circular |
| Pad Layout Dimension [diameter] | 0.078 in |
| Pad Layout Dimension [diameter] | 1.98 mm |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
| Recommended Working Height [z] | 0.198 in |
| Recommended Working Height [z] | 5.04 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.44 | |
| 10 | $ 1.22 | |||
| 25 | $ 1.17 | |||
| 50 | $ 1.14 | |||
| 100 | $ 1.09 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.89 | |||
| 1000 | $ 0.79 | |||
| 3000 | $ 0.72 | |||
Description
General part information
0933-1 Series
Contact Spring Through Hole, Solder Cup
Documents
Technical documentation and resources
No documents available
