Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-OUT17A1 | X-NUCLEO-OUT17A1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Driver | Driver |
| Interconnect System | ST Morpho, Arduino R3 Shield | ST Morpho, Arduino R3 Shield |
| Platform | Nucleo | Nucleo |
| Suggested Programming Environment | STM32Cube | STM32Cube |
| Type | Power Management | Power Management |
| Utilized IC / Part | IPS8200HQ-1 | IPS8200HQ-1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 67.50 | |
X-NUCLEO-OUT17A1 Series
Industrial digital output expansion board based on IPS8200HQ-1 for STM32 Nucleo
| Part | Function | Contents | Type | Suggested Programming Environment | Utilized IC / Part | Interconnect System | Platform |
|---|---|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-OUT17A1 | |||||||
STMicroelectronics X-NUCLEO-OUT17A1 | Driver | Board(s) | Power Management | STM32Cube | IPS8200HQ-1 | Arduino R3 Shield, ST Morpho | Nucleo |
Description
General part information
X-NUCLEO-OUT17A1 Series

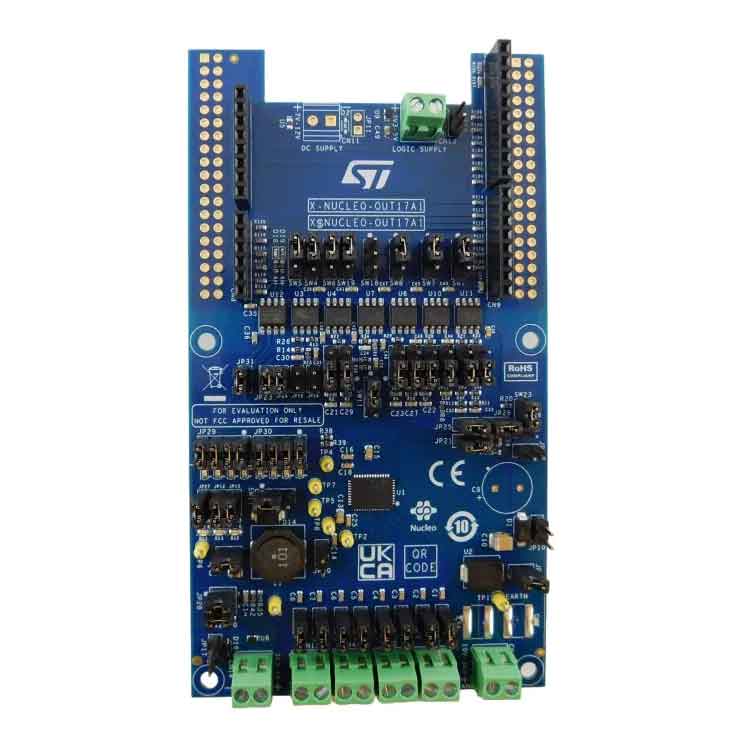

The X-NUCLEO-OUT17A1 is an industrial digital output expansion board for STM32 Nucleo. It provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS8200HQ-1 octal high-side, smart power, solid-state relay in a digital output module connected to 1.0 A industrial loads.
The X-NUCLEO-OUT17A1 interfaces with the microcontroller on the STM32 Nucleo via STISO620 and STISO621 and Arduino®UNO R3 connectors.
The user can select which driving mode controls the IPS8200HQ-1: parallel (SEL2 = L by JP21 = open) or SPI (SEL2 = H by JP21 = closed).
