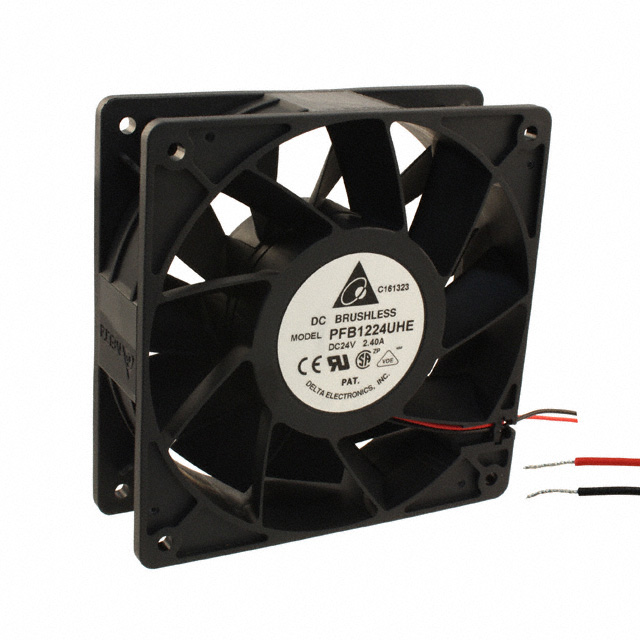

Specification	PFB1224UHE

Air Flow	252.9 CFM
Approval Agency	CSA, UL, CE, VDE
Bearing Type	Ball
Current Rating	2 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection
Lifetime	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	66.5 dB
Operating Temperature (Max)	140 °F
Operating Temperature (Min)	14 °F
Power (Watts)	48 W
RPM	5500 RPM
Size / Dimension Height	120 mm
Size / Dimension Length	120 mm
Size / Dimension Shape	Square
Static Pressure	1.412 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	26.5 VDC
Voltage Range (Min)	14 VDC
Weight	0.838 lb
Width	38 mm

PFB1224 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Bearing Type	Approval Agency	Air Flow	Voltage - Rated	Features	Width	Fan Type	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Termination Leads Count	Termination Type	Termination	Weight	RPM	Static Pressure	Noise	Power (Watts)	Material - Frame	Voltage Range (Max)	Voltage Range (Min)	Current Rating	Lifetime	Material - Blade	Ingress Protection Description	Ingress Protection IP Rating
Delta Electronics PFB1224UHE-R00	140 °F	14 °F	Ball	CE CSA UL VDE	252.9 CFM	24 VAC	Locked Rotor Sensor	38 mm	Tubeaxial	120 mm	Square	120 mm	3	Wire Leads	3 Wire Leads	0.838 lb	5500 RPM	1.412 in H2O	66.5 dB	48 W	Plastic	26.5 VDC	14 VDC	2 A	70000 Hrs	Plastic
Delta Electronics PFB1224UHE	140 °F	14 °F	Ball	CE CSA UL VDE	252.9 CFM	24 VAC	Locked Rotor Protection	38 mm	Tubeaxial	120 mm	Square	120 mm	2 leads	Wire Leads	2 Wire Leads	0.838 lb	5500 RPM	1.412 in H2O	66.5 dB	48 W	Plastic	26.5 VDC	14 VDC	2 A	70000 Hrs	Plastic
Delta Electronics PFB1224GHE	140 °F	14 °F	Ball	CE CSA UL VDE	217.8 CFM	24 VAC	Locked Rotor Protection	38 mm	Tubeaxial	120 mm	Square	120 mm	2 leads	Wire Leads	2 Wire Leads	0.838 lb	4800 RPM	1.075 in H2O	64 dB	32.4 W	Plastic	26.5 VDC	14 VDC	1.35 A	70000 Hrs	Plastic
Delta Electronics PFB1224UHE-T50F	140 °F	14 °F	Ball	CE CSA UL VDE	252.9 CFM	24 VAC	Locked Rotor Protection Speed Sensor (Tach)	38 mm	Tubeaxial	120 mm	Square	120 mm	3	Wire Leads	3 Wire Leads	0.838 lb	5500 RPM	1.412 in H2O	66.5 dB	48 W	Plastic	26.5 VDC	14 VDC	2 A	70000 Hrs	Plastic	Dust Protected Water Resistant	IP55
Delta Electronics PFB1224GHE-T500	140 °F	14 °F	Ball	CE CSA UL VDE	217.8 CFM	24 VAC	Locked Rotor Protection	38 mm	Tubeaxial	120 mm	Square	120 mm	2 leads	Wire Leads	2 Wire Leads	0.838 lb	4800 RPM	1.075 in H2O	64 dB	32.4 W	Plastic	26.5 VDC	14 VDC	1.35 A	70000 Hrs	Plastic	Dust Protected Water Resistant	IP55
Delta Electronics PFB1224EHE-R00	140 °F	14 °F	Ball	CE CSA UL VDE	181.3 CFM	24 VAC	Locked Rotor Sensor	38 mm	Tubeaxial	120 mm	Square	120 mm	3	Wire Leads	3 Wire Leads	0.838 lb	4000 RPM	0.751 in H2O	59 dB	21.6 W	Plastic	26.5 VDC	14 VDC	900 mA	70000 Hrs	Plastic
