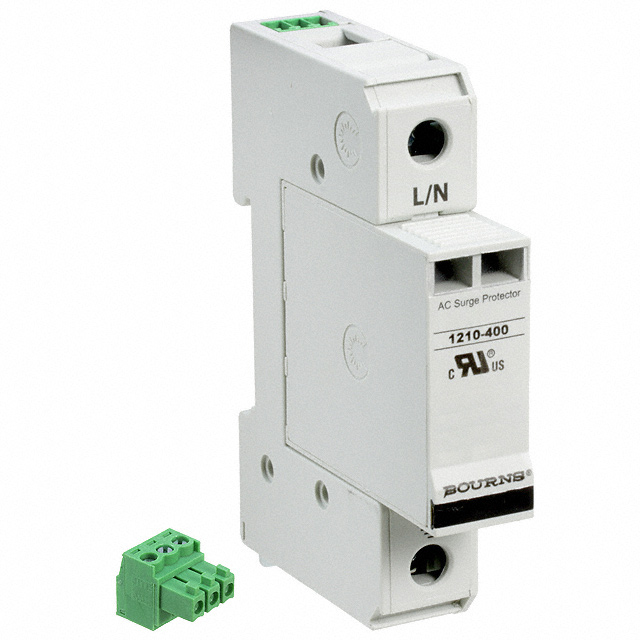

1210-1S-400

Active

Bourns Inc.

SURGE PROTECTOR, DIN RAIL, MAINS SURGE PROTECTOR, 1 POLE, TYPE 2 & 4, 100 KA, 420 VAC, DIN RAIL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSPD New Product Release Datasheet +3

1210-1S-400

Active

Bourns Inc.

SURGE PROTECTOR, DIN RAIL, MAINS SURGE PROTECTOR, 1 POLE, TYPE 2 & 4, 100 KA, 420 VAC, DIN RAIL

Deep-Dive with AI

DocumentsSPD New Product Release Datasheet +3

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 72.22
Newark	Each	1	$ 75.76

Description

General part information

1210 Series

Heavy duty Type-2 pluggable AC surge protective device (SPD) designed to protect high risk electrical service entrance and branch panels. This SPD is intended to be installed at the front end of the installation, in the main switchboard, close to sensitive terminals or in installations without LPS (lightning rods).

Documents

Technical documentation and resources

Specification	1210-1S-400	1210 Series

Approval Agency	UL, CSA, CE	UL, CSA, CE
Current - Discharge (Max) (8/20µS) [Max]	100 kA	100 kA
Current - Discharge (Nom) (8/20µS)	20 kA	20 kA
Current - Short Circuit Rating (SCCR)	100 kA	100 kA
Features	Thermally Protected, Remote Signaling Contacts	Thermally Protected, Remote Signaling Contacts
Form	Module Only	Module Only
Mounting Type	DIN Rail	DIN Rail
Number of Poles	1	1 - 4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-50 °C	-50 °C
Type	Type 4, Type 2	Type 4, Type 2
Voltage - Continuous Operating (Max) (MCOV)	420 VAC	420 VAC
Voltage - Continuous Operating (Max) (MCOV)	-	150 - 840 VAC
Voltage - Protection Level (VP) (2416)	1.8 kV	1.25 - 900 kV
Voltage - Protection Rating (VPR)	1.2 kV	1.2 - 900 kV

Part	Voltage - Protection Level (VP) (2416)	Voltage - Continuous Operating (Max) (MCOV) [Max]	Voltage - Protection Rating (VPR)	Type	Current - Discharge (Max) (8/20µS) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Discharge (Nom) (8/20µS)	Form	Approval Agency	Mounting Type	Number of Poles	Features	Current - Short Circuit Rating (SCCR)	Voltage - Continuous Operating (Max) (MCOV)
Bourns Inc. 1210-3S-600	4 kV	840 VAC	3 kV	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	3	Remote Signaling Contacts, Thermally Protected	100 kA
Bourns Inc. 1210-3S-400	1.8 kV		1.2 kV	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	3	Remote Signaling Contacts, Thermally Protected	100 kA	420 VAC
Bourns Inc. 1210-4S-120	900 V	150 VAC	600 V	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	4 poles	Remote Signaling Contacts, Thermally Protected	100 kA
Bourns Inc. 1210-1S-600	4 kV	840 VAC	3 kV	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	1	Remote Signaling Contacts, Thermally Protected	100 kA
Bourns Inc. 1210-4S-230	1.25 kV	275 VAC	900 V	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	4 poles	Remote Signaling Contacts, Thermally Protected	100 kA
Bourns Inc. 1210-3S-230	1.25 kV	275 VAC	900 V	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	3	Remote Signaling Contacts, Thermally Protected	100 kA
Bourns Inc. 1210-1S-400	1.8 kV		1.2 kV	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	1	Remote Signaling Contacts, Thermally Protected	100 kA	420 VAC
