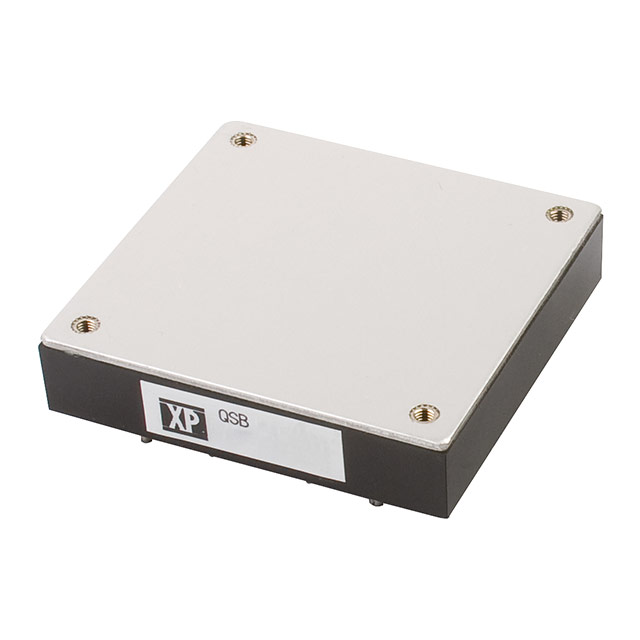

QSB30024S48

Active

XP POWER

DC DC CONVERTER 48V 300W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 48V 300W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Voltage - Output 1	Type	Features	Voltage - Isolation	Number of Outputs	Package / Case	Power (Watts)	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Mounting Type	Control Features	Supplier Device Package
XP POWER QSB30024S24	100 °C	-40 °C	36 V	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	ITE (Commercial)	24 V	Isolated Module	OCP OTP OVP Remote On/Off SCP	1.5 kV	1	Half Brick	300 W	12.5 A	9 V	88 %	Through Hole	Active High Enable
XP POWER QSB30024S48	100 °C	-40 °C	36 V	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	ITE (Commercial)	48 V	Isolated Module	OCP OTP OVP Remote On/Off SCP	1.5 kV	1	9-DIP Module	300 W	6.25 A	9 V	87 %	Through Hole	Active High Enable
XP POWER QSB30024S28-N	100 °C	-40 °C	36 V	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	ITE (Commercial)	28 V	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	1	Half Brick	300 W	10.7 A	9 V	88 %	Through Hole		Half Brick
XP POWER QSB30024S12	100 °C	-40 °C	36 V	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	ITE (Commercial)	12 V	Isolated Module	OCP OTP OVP Remote On/Off SCP	1.5 kV	1	9-DIP Module	300 W	25 A	9 V	90 %	Through Hole	Active High Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 48V 6.25A 9V - 36V Input
