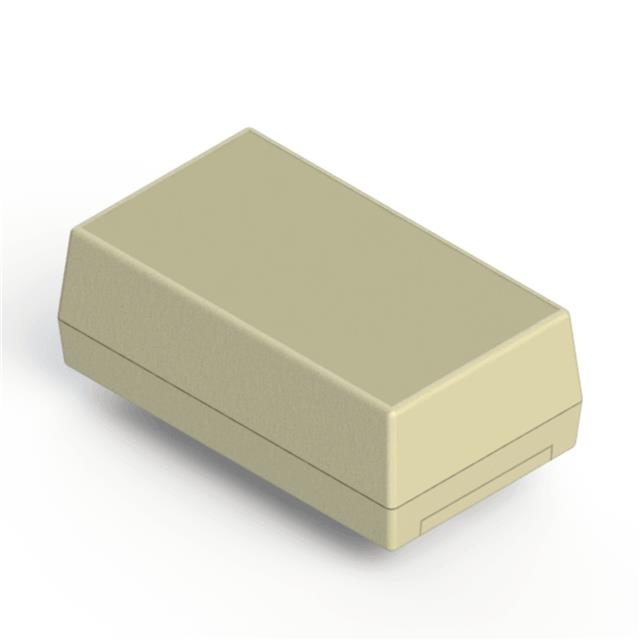

252I,AL

Active

Serpac

BOX ABS ALMOND 5.62"L X 3.25"W

Search across all available documentation for this part.

Documents252

Active

Serpac

BOX ABS ALMOND 5.62"L X 3.25"W

Documents252

Technical Specifications

Parameters and characteristics for this part

Specification	252I,AL

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	131.1 g
Weight	0.289 lb

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W)	Area (L x W)	Weight	Weight	Thickness	Thickness	Height [z]	Height [z]	Material Flammability Rating	Material	Features	Features	Color	Ratings	Design	Container Type
Serpac 252I,AL	3.25 "	142.75 mm	82.55 mm	5.62 in	18.3 in²	118 cm²	131.1 g	0.289 lb	2.54 mm	0.1 in	50.8 mm	2 in	UL94 HB	Plastic ABS	Battery Compartment PCB Supports	9 V	Almond	IP40 NEMA 1	Hand Held Split Sides	Box
Serpac 252I,BK	3.25 "	142.75 mm	82.55 mm	5.62 in	18.3 in²	118 cm²	131.1 g	0.289 lb	2.54 mm	0.1 in	50.8 mm	2 in	UL94 HB	Plastic ABS	Battery Compartment PCB Supports	9 V	Black	IP40 NEMA 1	Hand Held Split Sides	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.68

General part information

Box Plastic, ABS Almond Hand Held, Split Sides 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.000" (50.80mm)
