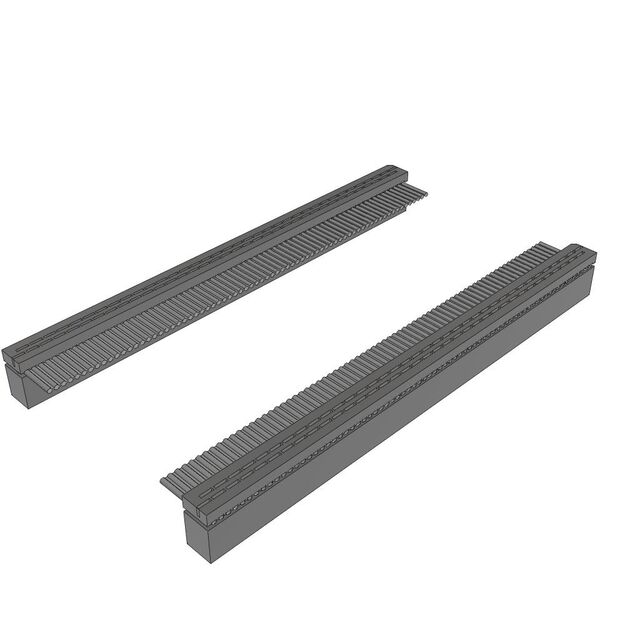

IDSD-36-D-15.70-T-G

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Search across all available documentation for this part.

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Number of Positions	Connector Type	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Number of Rows	Cable Termination	Contact Finish	Pitch - Cable	Pitch - Cable	Length [x]	Length	Length	Length
Samtec Inc. IDSD-36-D-78.74-G-R	Unshielded	72	Socket to Socket Reversed	0.1 in	2.54 mm	2 m	6.56 ft	2	IDC	Gold	0.05 "	1.27 mm
Samtec Inc. IDSD-36-D-24.00-T-G	Unshielded	72	Socket to Socket	0.1 in	2.54 mm	609.6 mm	2 '	2	IDC	Tin	0.05 "	1.27 mm
Samtec Inc. IDSD-36-D-03.50-G	Unshielded	72	Socket to Socket	0.1 in	2.54 mm	88.9 mm	0.292 ft	2	IDC	Gold	0.05 "	1.27 mm	3.5 "
Samtec Inc. IDSD-36-D-56.00-G	Unshielded	72	Socket to Socket	0.1 in	2.54 mm			2	IDC	Gold	0.05 "	1.27 mm		1.42 m	4.67 ft
Samtec Inc. IDSD-36-D-15.70-T-G	Unshielded	72	Socket to Socket	0.1 in	2.54 mm	398.78 mm	1.31 ft	2	IDC	Tin	0.05 "	1.27 mm
Samtec Inc. IDSD-36-S-36.00-G	Unshielded	72	Socket to Cable	0.1 in	2.54 mm	914.4 mm	3 ft	2	IDC	Gold	0.05 "	1.27 mm
Samtec Inc. IDSD-36-S-12.00-G	Unshielded	72	Socket to Cable	0.1 in	2.54 mm			2	IDC	Gold	0.05 "	1.27 mm		304.8 mm	1 ft
Samtec Inc. IDSD-36-S-24.00-G	Unshielded	72	Socket to Cable	0.1 in	2.54 mm	609.6 mm	2 '	2	IDC	Gold	0.05 "	1.27 mm
Samtec Inc. IDSD-36-D-02.00-G	Unshielded	72	Socket to Socket	0.1 in	2.54 mm			2	IDC	Gold	0.05 "	1.27 mm		50.8 mm	0.167 '	2 "
Samtec Inc. IDSD-36-D-16.00-G	Unshielded	72	Socket to Socket	0.1 in	2.54 mm	406.4 mm	1.33 ft	2	IDC	Gold	0.05 "	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

72 Position Cable Assembly Rectangular Socket to Socket 1.31' (398.78mm)
