Q-0K012000R001M

Active

Amphenol Custom Cable

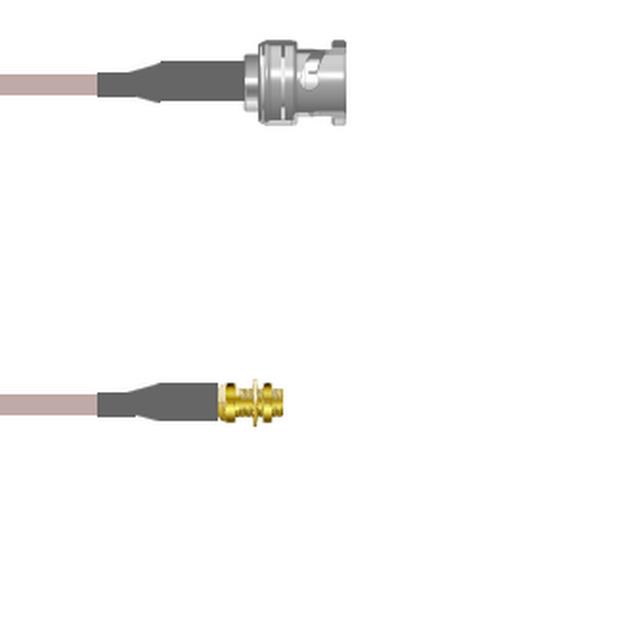

CBL ASSY BNC-MCX PLUG-JACK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0K012000R001M

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX PLUG-JACK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0K012000R001M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-0K0120 Series

Part	1st Connector Mounting Type	Features	2nd Contact Gender	2nd Connector	1st Contact Gender	Length	Length	Cable Type	2nd Connector Mounting Feature	2nd Connector Mounting Type	Frequency - Max [Max]	Overall Impedance	Color	Style	1st Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0K012000R009i	Free Hanging (In-Line)	Shielded	Female	MCX Jack	Male	9 "	228.6 mm	RG-316 DB	Bulkhead - Front Side Nut	Panel Mount	4 GHz	50 Ohms	Copper	BNC to MCX	BNC Plug
Amphenol Custom Cable Q-0K012000R048i	Free Hanging (In-Line)	Shielded	Female	MCX Jack	Male	48 in	1200 mm	RG-316 DB	Bulkhead - Front Side Nut	Panel Mount	4 GHz	50 Ohms	Copper	BNC to MCX	BNC Plug	4 ft
Amphenol Custom Cable Q-0K012000R001M	Free Hanging (In-Line)	Shielded	Female	MCX Jack	Male	39.4 in	1 m	RG-316 DB	Bulkhead - Front Side Nut	Panel Mount	4 GHz	50 Ohms	Copper	BNC to MCX	BNC Plug	3.3 ft
Amphenol Custom Cable Q-0K012000R018i	Free Hanging (In-Line)	Shielded	Female	MCX Jack	Male			RG-316 DB	Bulkhead - Front Side Nut	Panel Mount	4 GHz	50 Ohms	Copper	BNC to MCX	BNC Plug		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0K012000R108i	Free Hanging (In-Line)	Shielded	Female	MCX Jack	Male	108 in	2.7 m	RG-316 DB	Bulkhead - Front Side Nut	Panel Mount	4 GHz	50 Ohms	Copper	BNC to MCX	BNC Plug	9 ft
Amphenol Custom Cable Q-0K012000R2.5M	Free Hanging (In-Line)	Shielded	Female	MCX Jack	Male	98.4 in	2.5 m	RG-316 DB	Bulkhead - Front Side Nut	Panel Mount	4 GHz	50 Ohms	Copper	BNC to MCX	BNC Plug	8.2 '
Amphenol Custom Cable Q-0K012000R072i	Free Hanging (In-Line)	Shielded	Female	MCX Jack	Male	72 in	1.8 m	RG-316 DB	Bulkhead - Front Side Nut	Panel Mount	4 GHz	50 Ohms	Copper	BNC to MCX	BNC Plug	6 ft
Amphenol Custom Cable Q-0K012000R084i	Free Hanging (In-Line)	Shielded	Female	MCX Jack	Male	84 in	2.1 m	RG-316 DB	Bulkhead - Front Side Nut	Panel Mount	4 GHz	50 Ohms	Copper	BNC to MCX	BNC Plug	7 ft
Amphenol Custom Cable Q-0K012000R012i	Free Hanging (In-Line)	Shielded	Female	MCX Jack	Male	12 "	304.8 mm	RG-316 DB	Bulkhead - Front Side Nut	Panel Mount	4 GHz	50 Ohms	Copper	BNC to MCX	BNC Plug
Amphenol Custom Cable Q-0K012000R.75M	Free Hanging (In-Line)	Shielded	Female	MCX Jack	Male	29.53 "	750 mm	RG-316 DB	Bulkhead - Front Side Nut	Panel Mount	4 GHz	50 Ohms	Copper	BNC to MCX	BNC Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 155.76
		25	$ 153.26
		50	$ 150.77
		100	$ 148.28
		250	$ 145.78

Description

General part information

Q-0K0120 Series

Cable Assembly Coaxial BNC to MCX RG-316 DB 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
