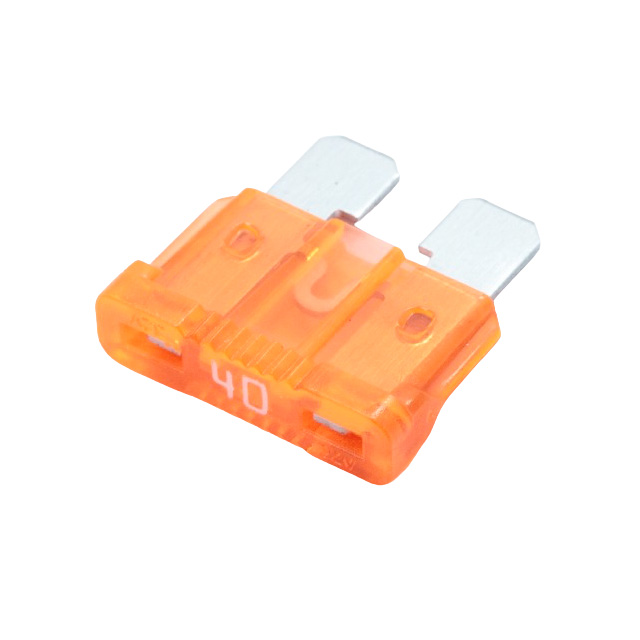

APR-40A
ActiveOptiFuse
FUSE AUTO 40A 32VDC BLADE ATO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APR-40A
ActiveOptiFuse
FUSE AUTO 40A 32VDC BLADE ATO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APR-40A |
|---|---|
| Approval Agency | ISO, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Current Rating (Amps) | 40 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | ATO, Blade, ATC |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.752 in |
| Size / Dimension [x] | 19.1 mm |
| Size / Dimension [y] | 0.201 " |
| Size / Dimension [y] | 5.1 mm |
| Size / Dimension [z] | 12.3 mm |
| Size / Dimension [z] | 0.484 in |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.27 | |
| 10 | $ 0.26 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
Description
General part information
APR-40 Series
40 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
