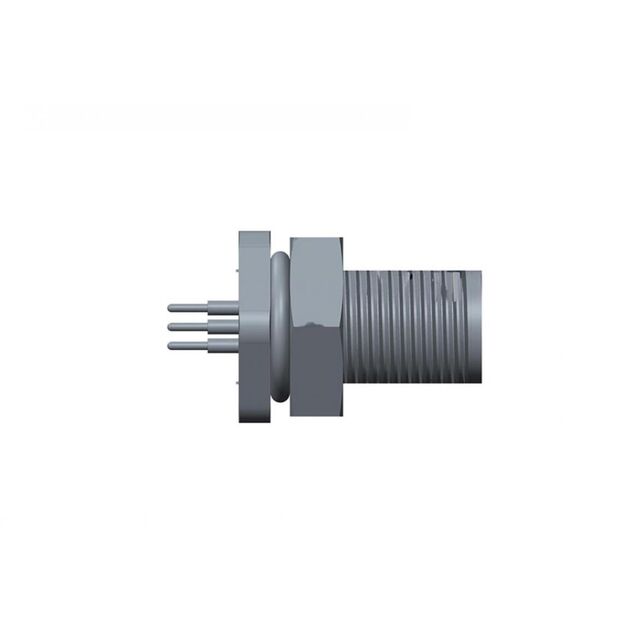

MSAP-05PMMP-SF8003

Active

Amphenol LTW

CONN RCPT MALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 5POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	MSAP-05PMMP-SF8003

Backshell Material, Plating	Copper Alloy
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	M12-5
Shielding	Unshielded
Termination	Solder
Voltage Rating	60 VDC

Part	Connector Type	Ingress Protection	Primary Material	Mounting Type	Color	Mounting Feature	Backshell Material, Plating	Shell Material	Shielding	Contact Finish - Mating	Shell Size - Insert	Voltage Rating	Insert Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Termination
Amphenol LTW MSAP-05PMMP-SF8003	Male Pins Receptacle	IP68 - Dust Tight Waterproof	Plastic	Panel Mount Through Hole	Black	Bulkhead - Front Side Nut	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Unshielded	Gold	M12-5	60 VDC	Polyamide (PA) Nylon Glass Filled	A	-40 °C	105 ░C	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder
